EV Charging Solution

THE FUTURE OF CHARGING. CONNECTED BY KNX.

Strong and headline is the future electric vehicle charging solution.

EXPLORE SOLUTIONS

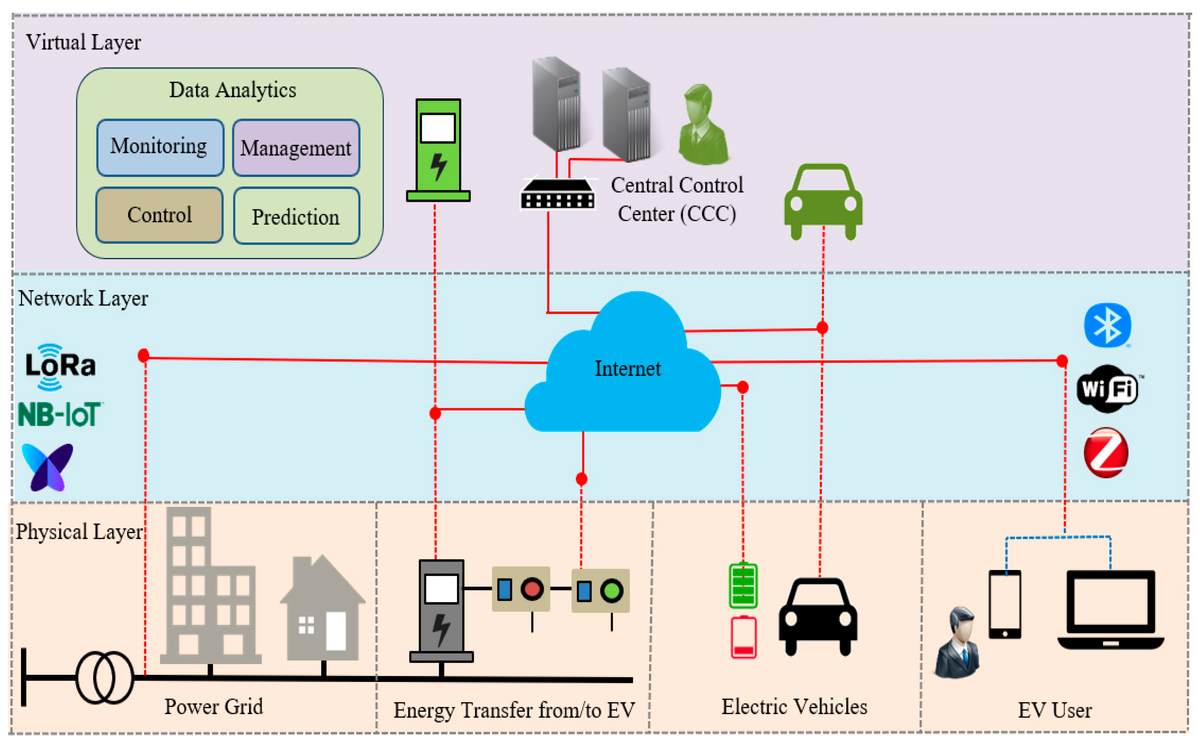

EV Architecture Diagram

Technical Characteristics

Product reference VE 222 S00
Charging mode 3 mode
Socket 2 x type 2 sockect
Power Supply (V) Three-phase
Maximum output power (VA) 22 kW
Maximum output power (VA) 230V
Frequency (Hz) 50/60 Hz
Power rating (mA) 32
Configurable charging current from 6A to maximum current
Cable section (mm2) 10
Connectivity RFID, Bluetooth 5, Wi-Fi 2,4 GHz, Ethernet, OCPP 1.6, KNX
Mounting Wall - Interior/Exterior
Wrapping material Metalic
Impact resistance IK10
Protection Level IP54
Minimum Working Temperature (ºC) (min) -25
Maximum Working Temperature (ºC) (max) 50
Minimum Storage Temperature (ºC) (min) -25
Maximum Storage Temperature (ºC) (max) 75
Relative humidity % 5% a 95%

Documents

FILE

Data sheet

FILE

User Manual

FILE

ETS Program

FILE

Certificates

Logistics data

Product
Width (mm) 249
Depth (mm) 180
Height (mm) 322
Weight (g) 7200
Unit EAN 8422447018998
Packaging
Packing unit 1
Packing width (mm) 380.5
Packing depth (mm) 231.5
Packing height (mm) 536
Gross packing weight (kg) 7,6
