16 CHANNEL KNX COMBO SHUTTER + SWITCH ACTUATOR

Key Features

• 16-Channel Combination Control: Supports up to 16 channels, each configurable as either a shutter or switching output, offering flexible control for diverse automation applications.

• Dual Operation Modes: Each output can be individually set via ETS to function as a shutter or switch actuator, providing adaptable control for lighting, blinds, and general-purpose loads.

• Manual Output Control: Integrated push buttons enable direct manual operation of outputs, ensuring uninterrupted functionality during KNX bus communication failures.

• Full KNX Integration: Communicates seamlessly with KNX sensors and building management systems, allowing synchronised operation and real-time system feedback.

• Powered via KNX Bus: Operates fully through the KNX bus, eliminating the need for an external power supply and simplifying installation.

• Configurable via ETS: Complete configuration is handled through ETS software, with object availability and parameters defined based on project-specific settings.

Product Description

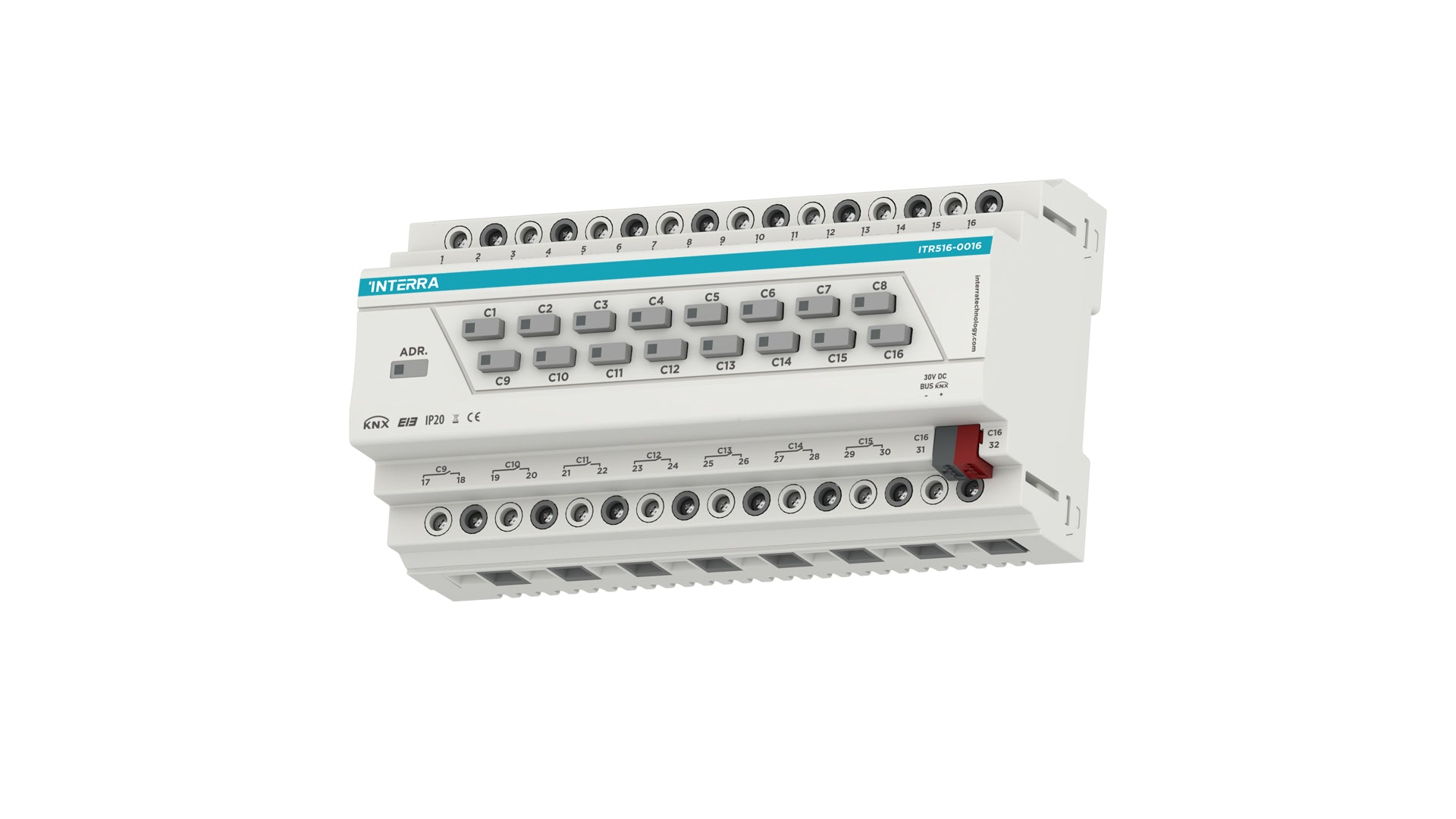

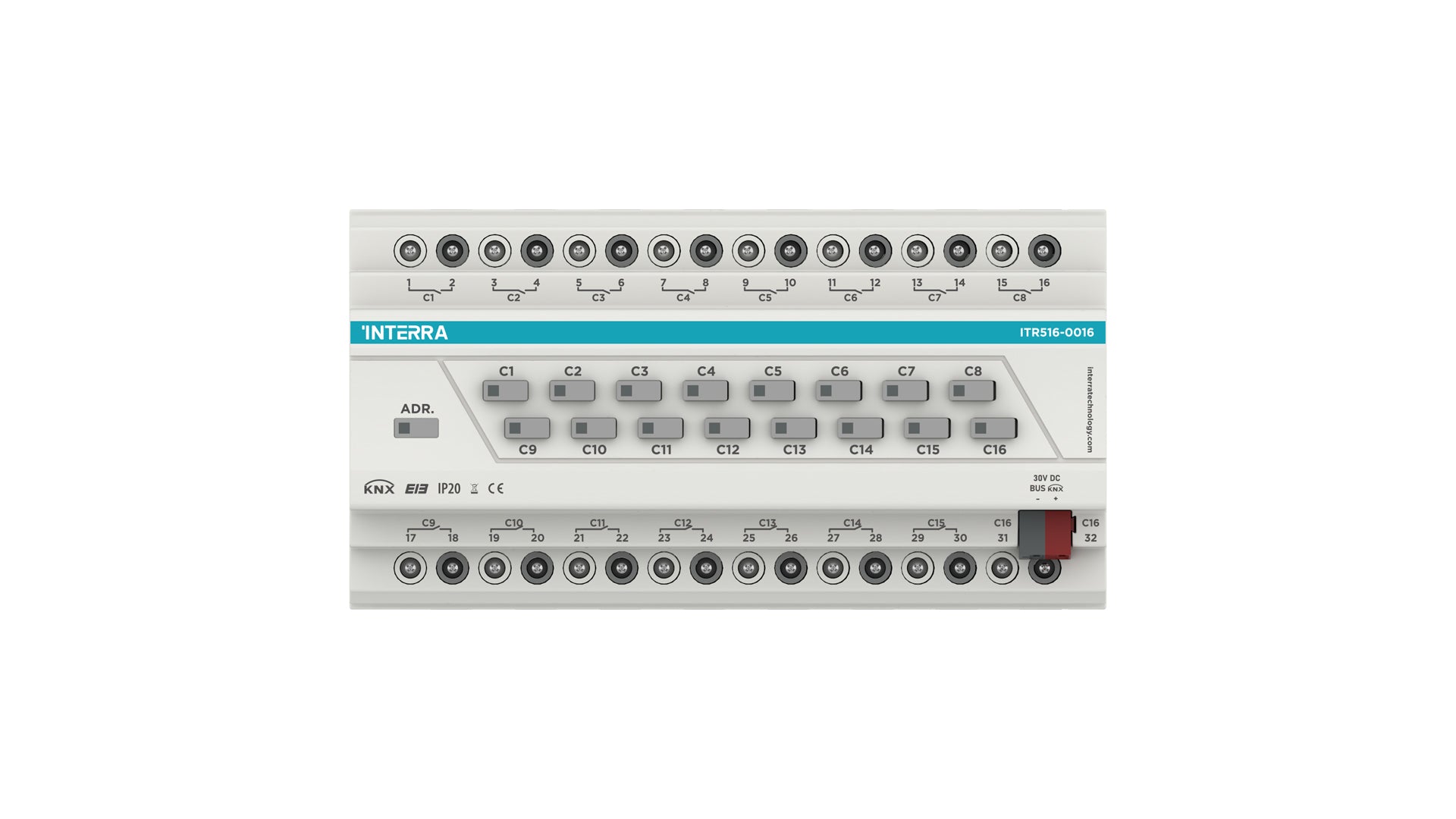

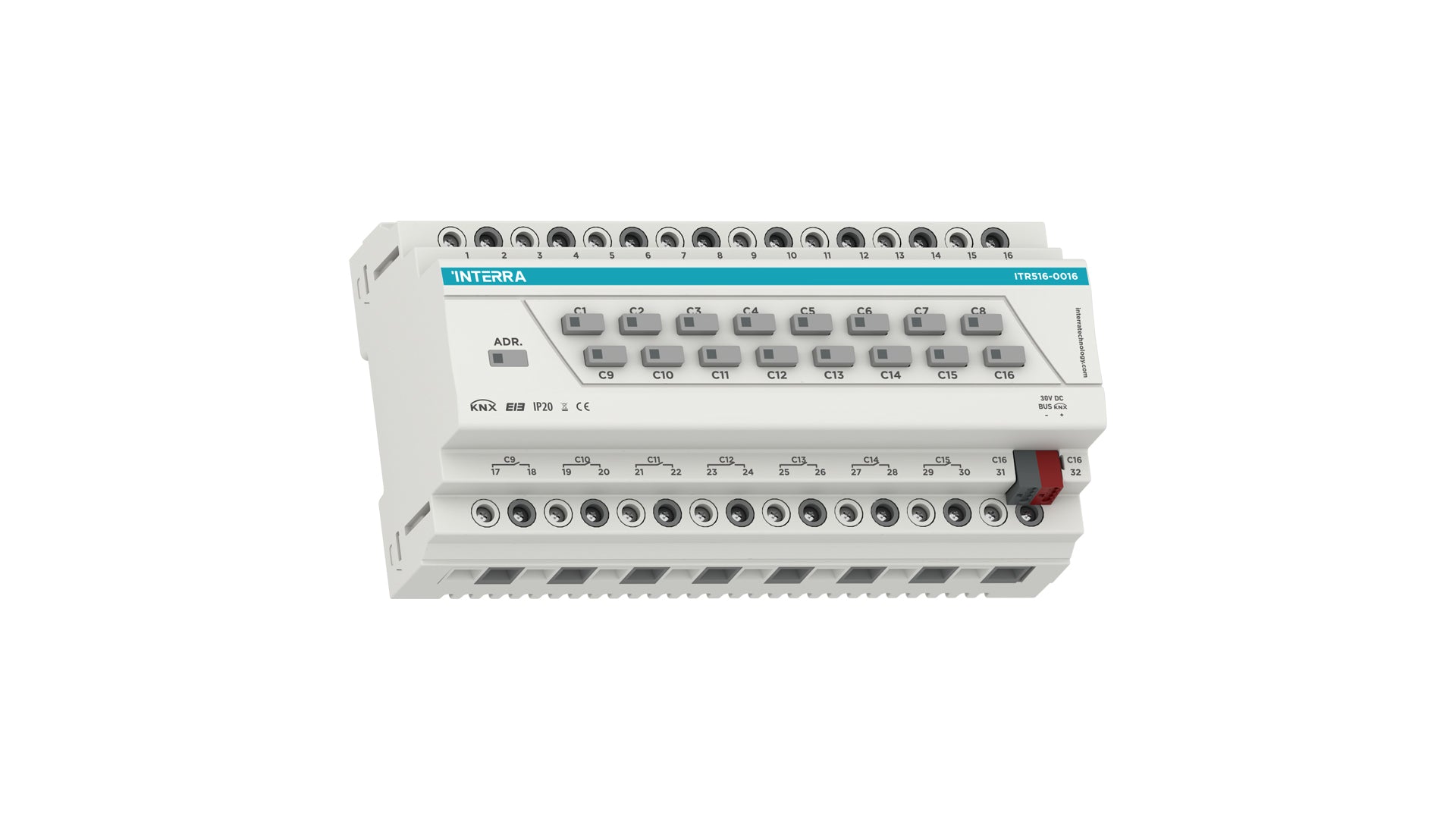

The ITR516-0016 16 Channel KNX Combo Shutter + Switch Actuator is a compact, multifunctional actuator designed for versatile control in KNX-based automation systems. With 16 independently configurable channels, it provides the flexibility to manage both switching and shutter/blind functions from a single device, making it ideal for residential and commercial installations.

Built for seamless KNX integration, the actuator allows efficient communication with KNX sensors and building management systems for coordinated automation and feedback control. The manual control buttons on the device ensure continued local operation in the event of bus communication interruptions, maintaining system reliability and usability.

Powered directly by the KNX bus, the actuator requires no additional power source and can be fully parameterised via ETS software. The number and type of communication objects depend on ETS settings, allowing installers to configure the device precisely for project requirements. The ITR516-0016 delivers reliable performance, compact design, and flexible configuration for modern KNX automation environments.
