Electronic Chargers

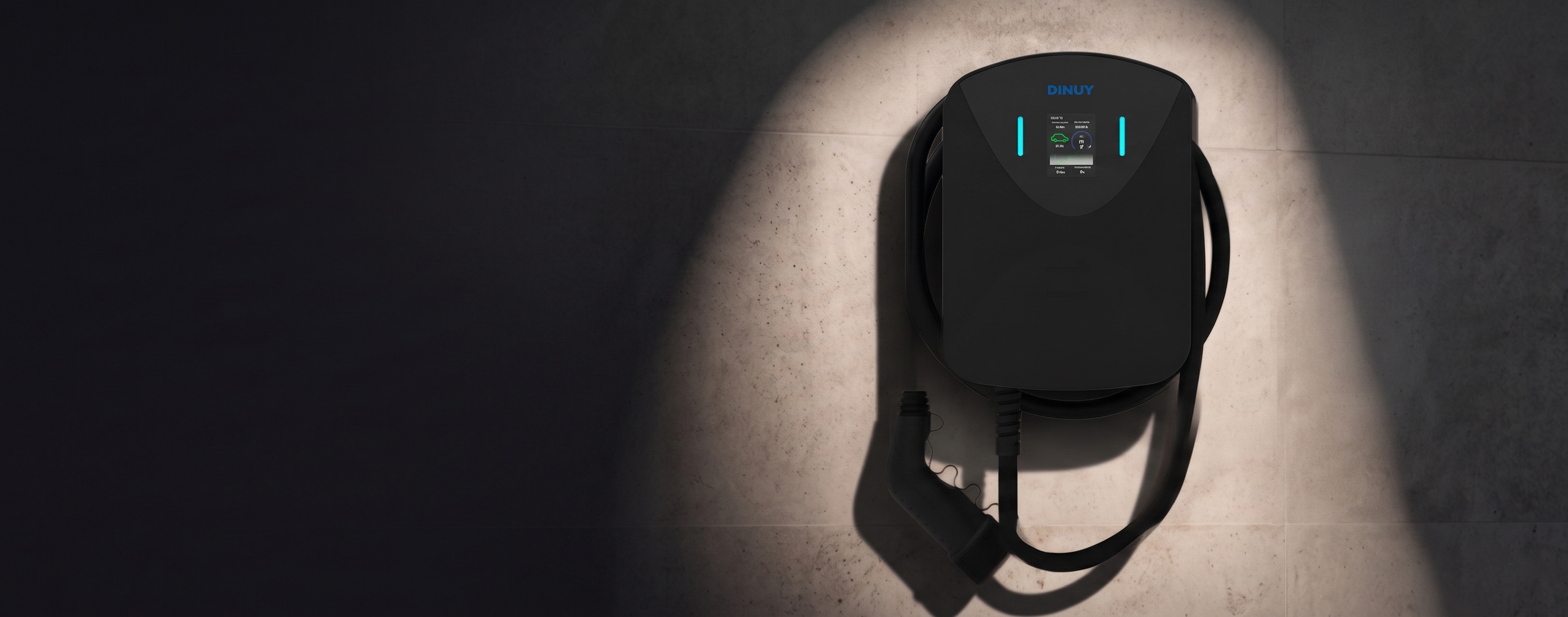

22kW Three-phase charger with 1- 5m cable

Three-phase 22 kW EV charger with single output, 5 m Type 2 cable, smart APP control, RFID access, KNX integration, and advanced connectivity for safe and efficient charging.
Buy Now Configure System
Scroll

BEAUTIFUL, MINIMAL INTELLIGENT

Complements architecture Doesn't fight it.

Clean lines, premium materials and a form designed to integrate naturally into any environment.

Why Choose Us?

Discover the features that make this product powerful and future-ready.

Minimal Design

Timeless aesthetics with a compact form that blends into any space.

Smart Charging

Dynamic load management optimizes power distribution and protects your electrical installation.

Native Integration

Built for smart buildings with seamless KNX and automation system compatibility.

Future Ready

Engineered for tomorrow’s mobility standards with scalable and upgrade-ready architecture.

SMART EXPERIENCE

Charging that thinks ahead.

Full control from your app. Schedule, monitor, and optimize your setup from anywhere.

Download Button One Download Button Two

Schedule

Set charging times that suit your day.

08:00
17:00

Solar Charging

Use your solar energy to charge your car.

Solar Charging
App UI Presentation View

Real-time Monitoring

Track energy, power and cost in real time.

Real-time Monitoring

Load Management

Automatically balances power across your home or building.

Load Management
SMART INSTALLATION

One intelligent energy ecosystem.

Dinuy eMobility chargers integrate perfectly with KNX, solar systems, storage and building automation for a smarter tomorrow.

Discover solutions
One intelligent energy ecosystem. Technical Structural Diagram
SMART INSTALLATION

Engineered for a perfect fit.

Designed for fast, safe and flexible installation in any environment.

View installation guide
Engineered for a perfect fit. Technical Structural Diagram

Technical Characteristics

Product reference VE 221 M05
Charging mode 3 mode
Socket 1 x 5m type 2 cable
Power Supply (V) Three-phase
Maximum output power (VA) 22 kW
Maximum output power (VA) 230V
Frequency (Hz) 50/60 Hz
Power rating (mA) 32
Configurable charging current from 6A to maximum current
Cable section (mm2) 10
Connectivity RFID, Bluetooth 5, Wi-Fi 2,4 GHz, Ethernet, OCPP 1.6, KNX
Mounting Wall - Interior/Exterior
Wrapping material Metalic
Impact resistance IK10
Protection Level IP54
Minimum Working Temperature (ºC) (min) -25
Maximum Working Temperature (ºC) (max) 50
Minimum Storage Temperature (ºC) (min) -25
Maximum Storage Temperature (ºC) (max) 75
Relative humidity % 5% a 95%

Documents

FILE

Data Sheet

FILE

User Manual

FILE

ETS Program

FILE

Certificates

Logistics data

Product
Width (mm) 249
Depth (mm) 180
Height (mm) 322
Weight (g) 7500
Unit EAN 8422447018974
Packaging
Type of packaging BX
Packing unit 1
Packing width (mm) 380.5
Packing depth (mm) 231.5
Packing height (mm) 536
Gross packing weight (kg) 7.9
