24 CHANNEL KNX COMBO SHUTTER + SWITCH ACTUATOR

Key Features

• 24-Channel Combination Control: Supports up to 24 channels, configurable as either shutter or switching outputs, offering maximum flexibility for diverse automation applications.

• Dual Operation Modes: Each output can be parameterised individually through ETS to function as a shutter or switch actuator, enabling versatile project configurations.

• Manual Output Control: Integrated push buttons allow direct manual operation of outputs, ensuring local control even in the event of KNX bus communication failures.

• Full KNX Integration: Communicates seamlessly with KNX sensors and building management systems, allowing real-time information exchange and coordinated control.

• Powered via KNX Bus: Operates entirely through the KNX bus, eliminating the need for an external power supply and simplifying installation.

• Easy Configuration through ETS: Complete device setup, parameter assignment, and functional customisation are performed via ETS software, with available objects defined by ETS settings.

Product Description

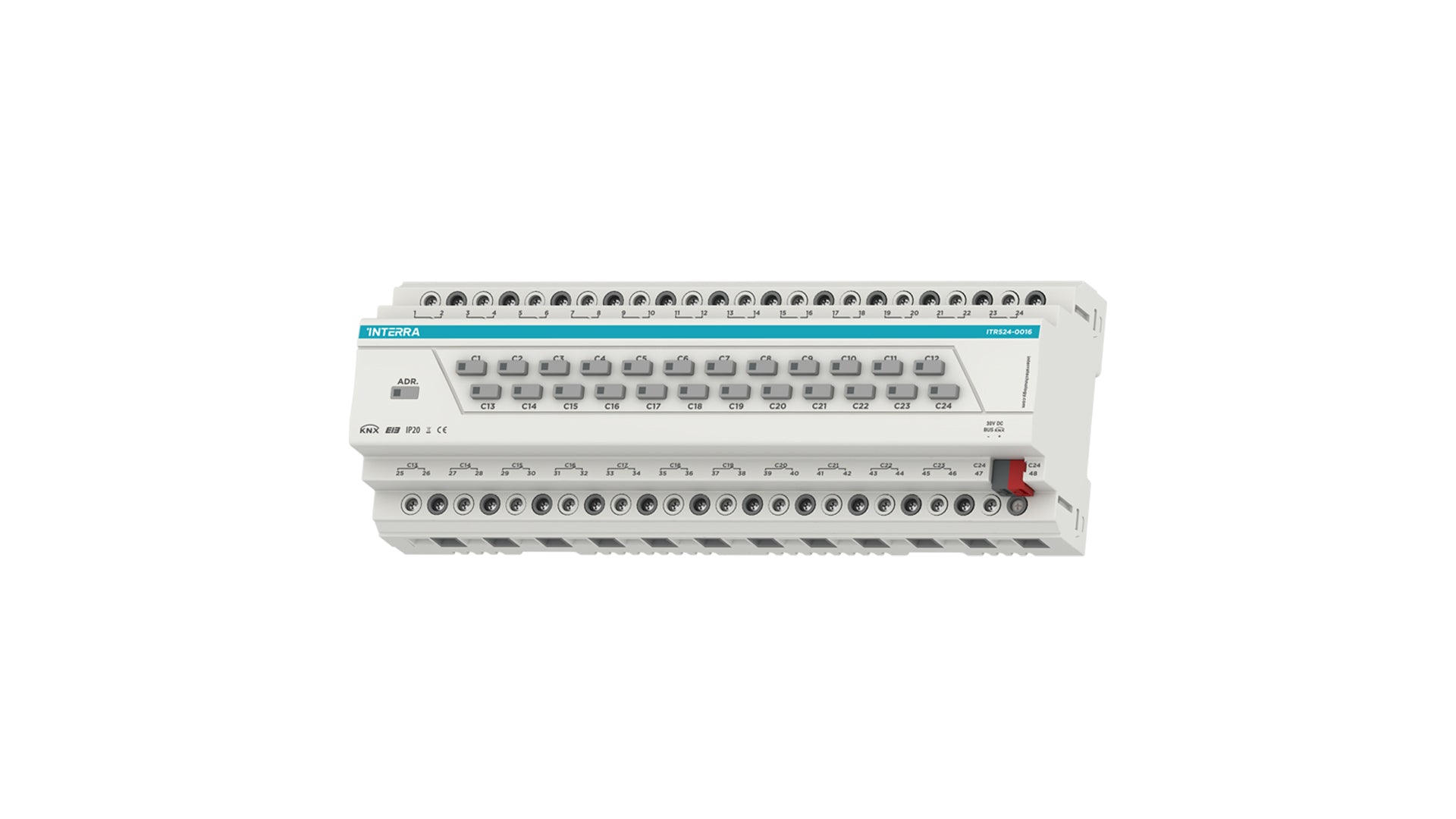

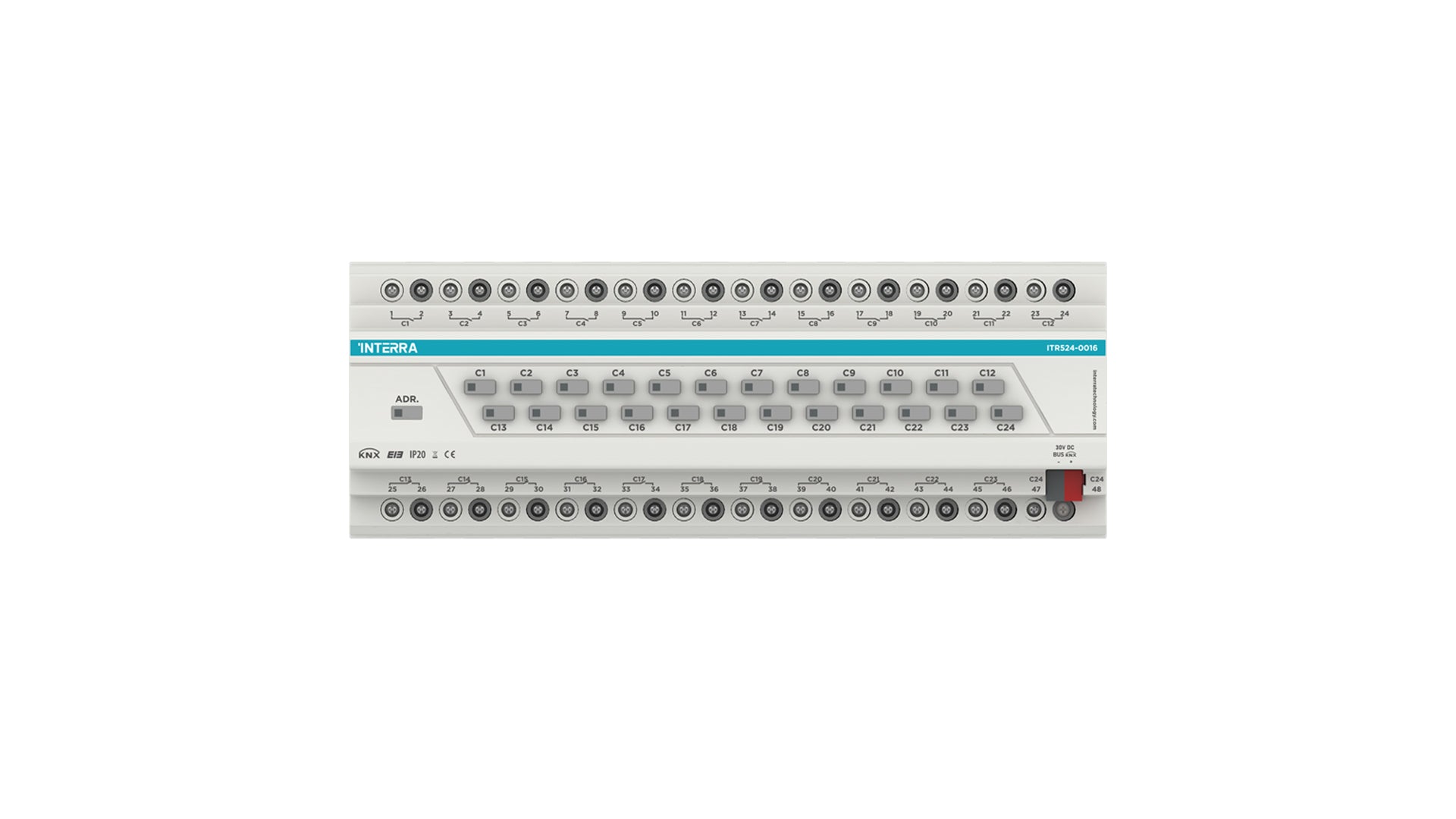

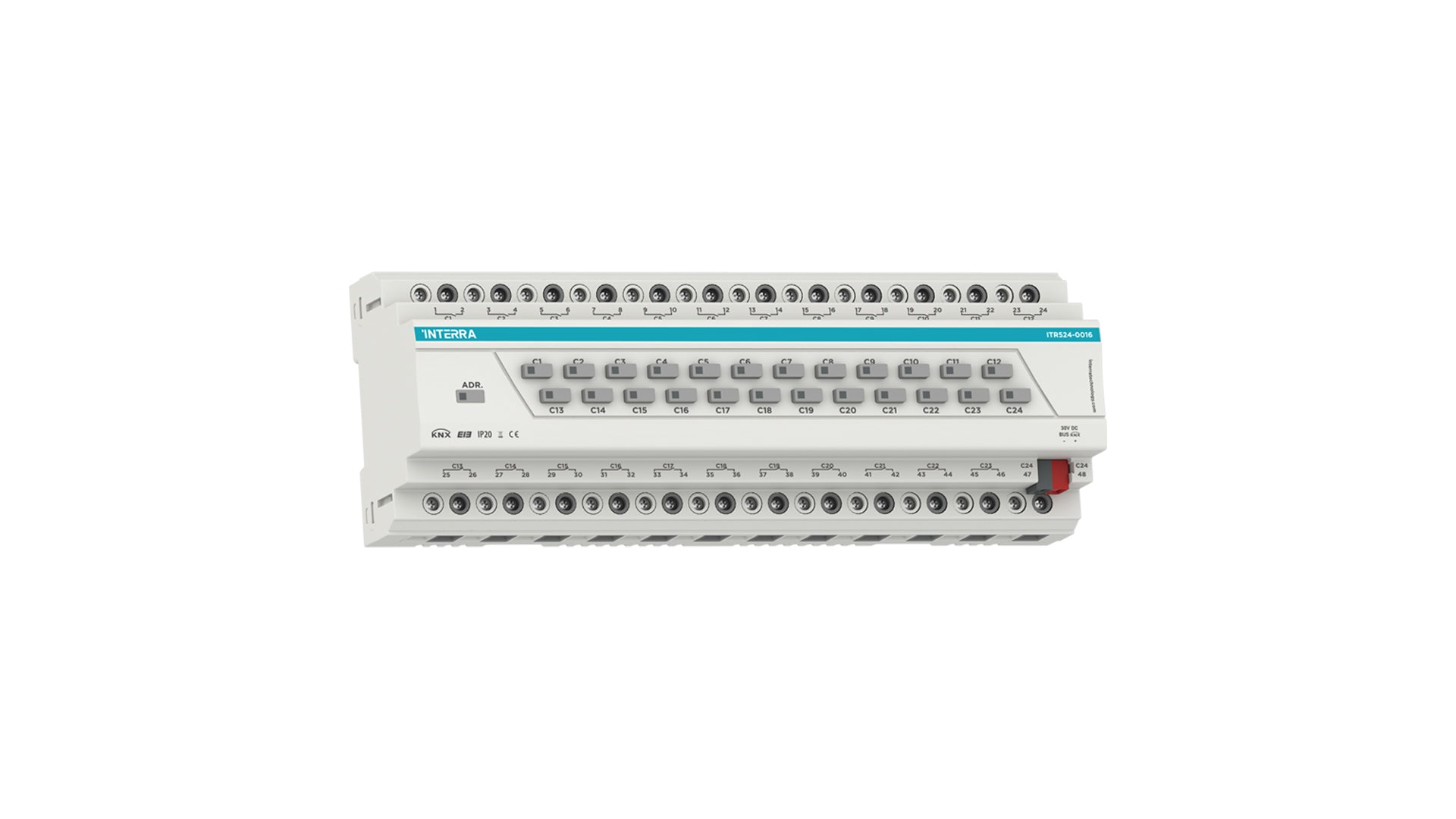

The ITR524-0016 24 Channel KNX Combo Shutter + Switch Actuator is a high-performance multifunctional actuator designed for advanced building automation projects. Its flexible configuration allows each of the 24 channels to operate either as a switch output or a shutter control, providing exceptional adaptability in lighting, blind, and control applications.

Designed for seamless KNX system integration, this actuator enables real-time communication with KNX sensors and building management systems for coordinated automation across multiple zones. Built-in manual control push buttonsensure continued local operation in the event of bus communication interruptions, maintaining reliability and usability in all conditions.

The device is powered directly by the KNX bus, requiring no external power source, and can be fully configured via ETS software. All functional objects are dynamically generated based on ETS settings, allowing integrators to tailor the actuator precisely to project requirements. The ITR524-0016 provides a dependable, flexible, and space-efficient solution for complex KNX-based automation systems.
