4 CHANNEL KNX COMBO SHUTTER + SWITCH ACTUATOR

Key Features

• 4-Channel Combination Control: Supports up to 4 channels, each individually configurable as a shutter or switching output, providing flexible control for lighting, blinds, and automation functions.

• Dual Operation Modes: Each output can be parameterised through ETS to operate as a shutter or switch actuator, offering versatility for various control requirements.

• Manual Output Control: Integrated push buttons allow local manual operation of each channel, ensuring functionality even during KNX bus communication failures.

• Full KNX Integration: Communicates seamlessly with KNX sensors and building management systems for synchronised automation, feedback, and centralised control.

• Powered via KNX Bus: Operates entirely from the KNX bus without requiring an external power source, simplifying installation and reducing wiring complexity.

• Complete ETS Configuration: Fully configurable through ETS software, with available communication objects and functions defined according to specific project parameters.

Product Description

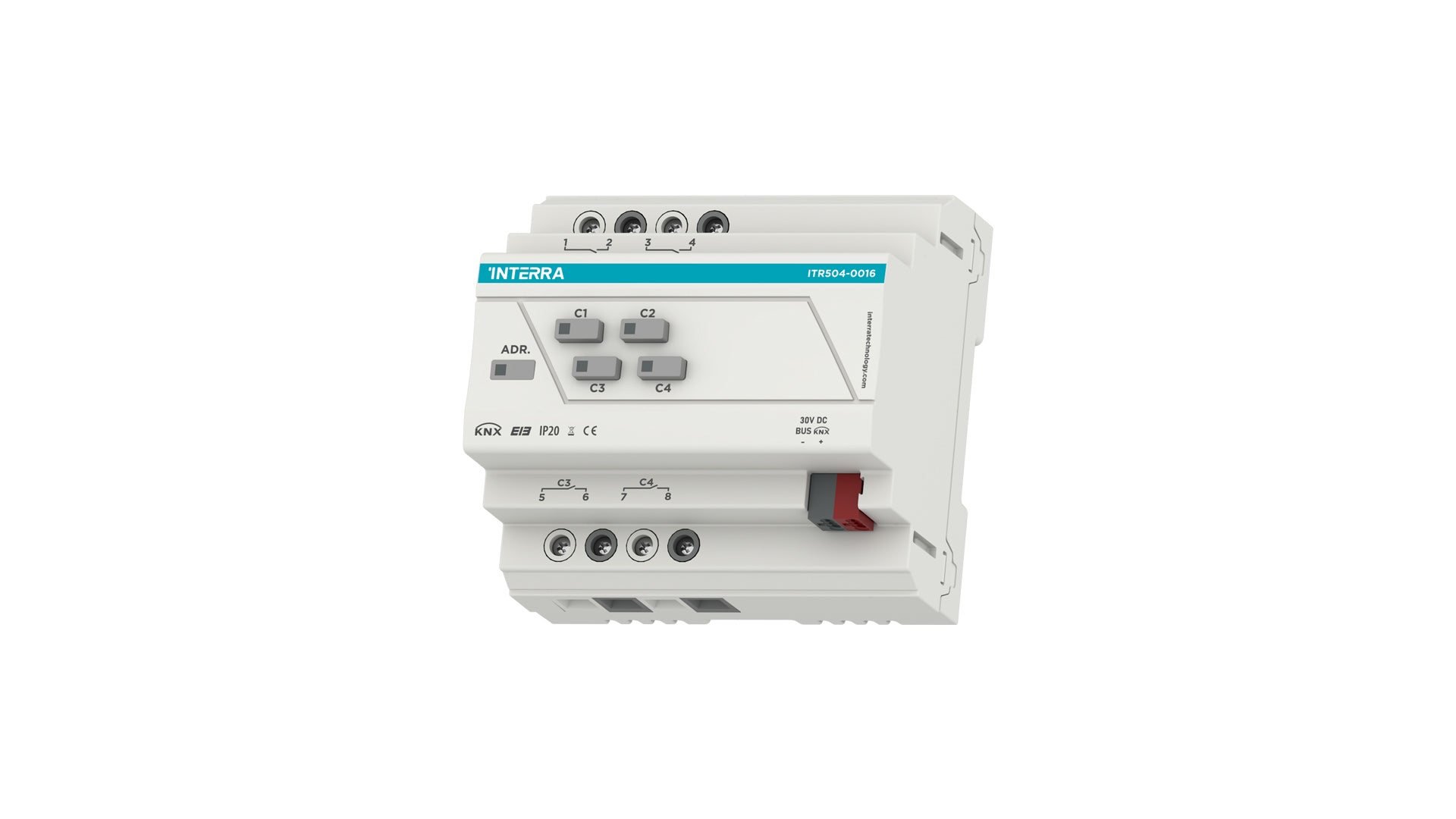

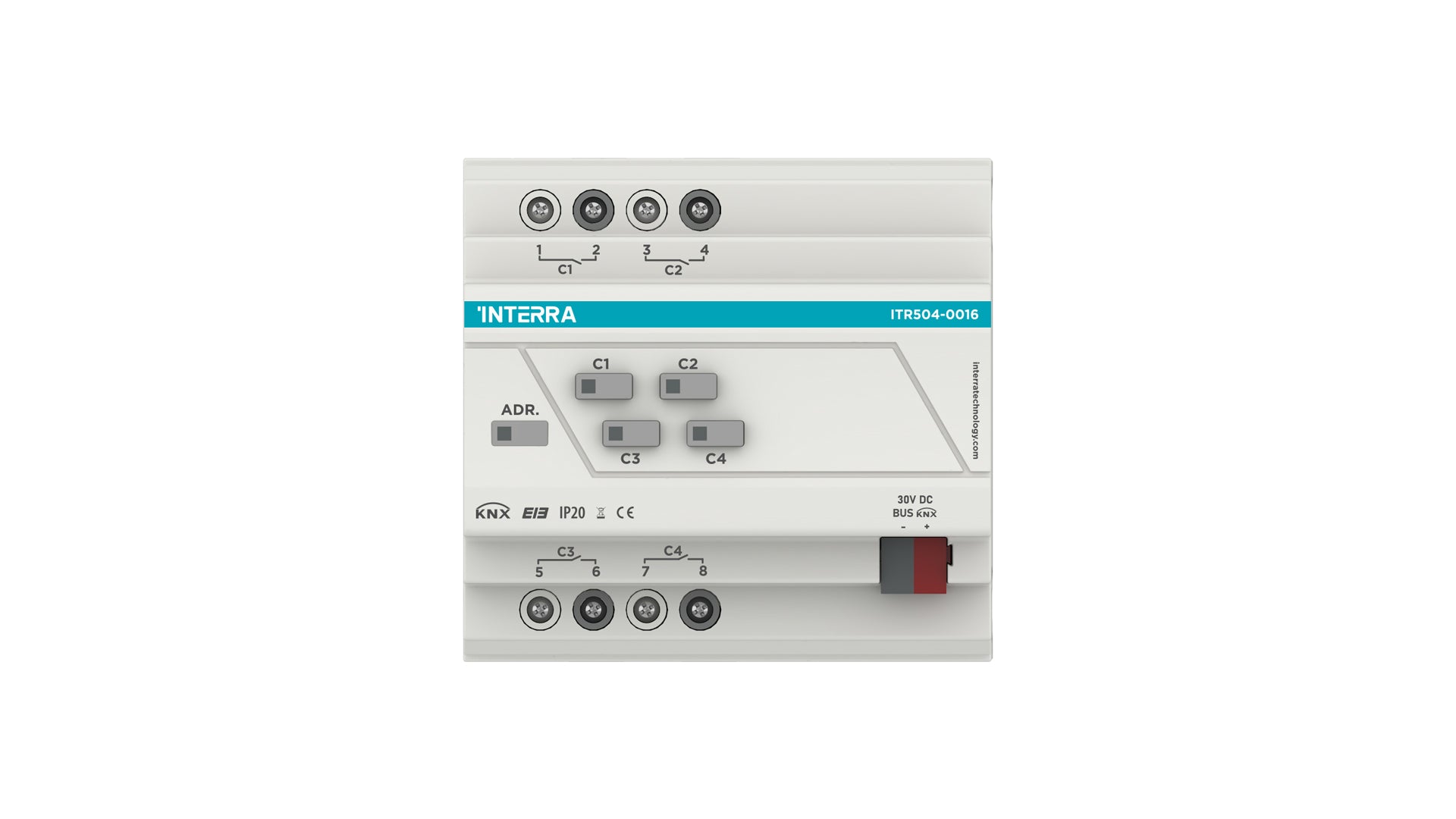

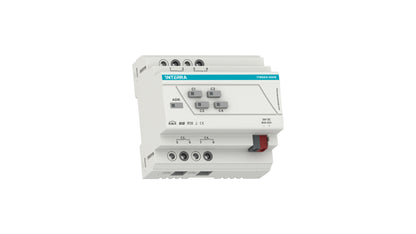

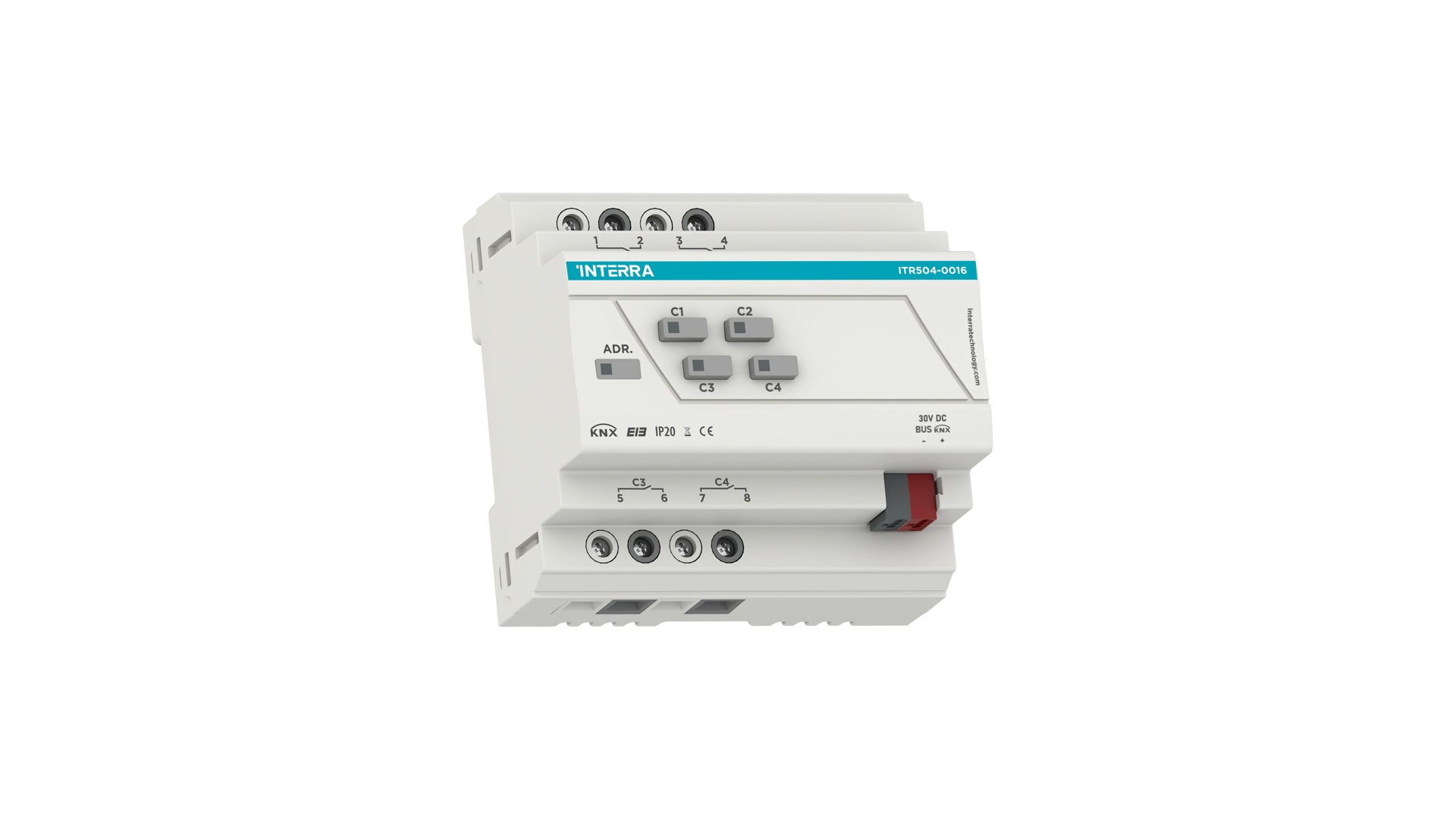

The ITR504-0016 4 Channel KNX Combo Shutter + Switch Actuator is a versatile and compact actuator designed to deliver reliable control within KNX automation systems. Each of its four channels can be independently configured as either a switch output or a shutter output, allowing it to manage a range of applications such as lighting, blinds, and general electrical loads.

Fully integrated into the KNX system, this actuator enables efficient communication with KNX sensors and building management systems for coordinated operation and automation. The manual control buttons located on the device provide direct operation of each output, ensuring continued control even when KNX bus communication is temporarily unavailable.

Powered completely by the KNX bus, the ITR504-0016 requires no additional power supply and is configured entirely via ETS software. The number and type of communication objects depend on ETS configuration, providing installers with full flexibility to tailor the device to project-specific requirements. Compact, efficient, and dependable, the ITR504-0016 is an ideal solution for small to mid-sized KNX control applications.
