DUALTECH DALI-2 INPUT DEVICE

Key Features:

• Dual technology detection: Combines ultrasonic and passive infrared (PIR) sensors to provide 360° detection, ensuring reliable presence detection even behind objects or under variable temperatures.
• DALI-2 Input Device integration: Seamlessly communicates with DALI-2 systems, transmitting sensor data to lighting management platforms like LiveLink for efficient lighting control.
• Concealed installation: Designed for in-ceiling installation, providing a sleek and professional look in offices, conference rooms, and classrooms.

Product Description:

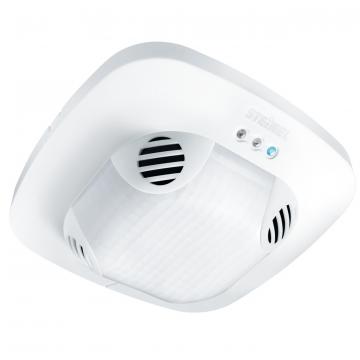

The Steinel DualTech DALI-2 Presence Detector offers the best of both worlds by combining ultrasonic and passive infrared (PIR) technology. This ensures that presence is detected reliably, even behind obstacles or in environments with temperature variations. With a 360° detection angle and coverage up to 36 m², this sensor is ideal for professional indoor environments such as classrooms, open-plan offices, and conference rooms. The ultrasonic technology ensures detection in blind spots, while the PIR sensor offers additional detection range, making this detector a versatile solution.

Fully integrated with DALI-2 systems, the sensor enables communication of real-time data to advanced lighting management platforms like LiveLink. It supports master/slave interconnection via the DALI bus, offering scalable installations in larger buildings. The concealed ceiling installation ensures the detector blends seamlessly into the room, maintaining a clean and professional aesthetic.

Key Specifications:

• Detection Technology: Ultrasonic and passive infrared (PIR) sensors with light sensor
• Detection Range:
  • Ultrasonic: Ø 10 m (79 m²) for presence
  • PIR: Ø 4 m radial and Ø 8 m tangential for presence
• Detection Angle: 360°
• Mounting Height: 2.5 to 3.5 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V)
• Current Consumption:
  • Max: 42 mA (IEC 62386-101)
  • Typical: 16 mA (at 16 V input)
• Twilight Setting: Adjustable from 10 to 1000 lux
• Operating Temperature: -25°C to +55°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9010 white)
• Additional Features: Sneak-by guard, master/slave interconnection via DALI bus​
