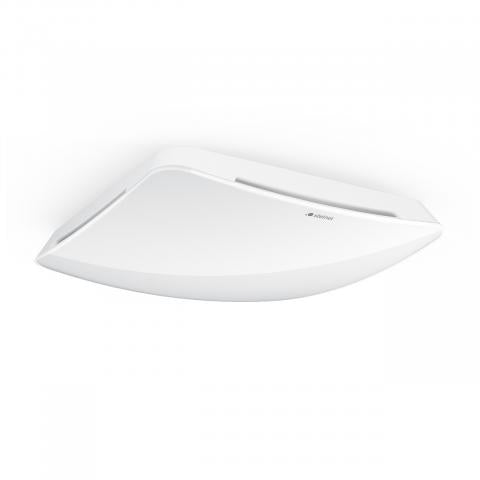

MULTISENSOR AIR KNX

Key Features:

• Comprehensive environmental monitoring: Measures temperature, humidity, air pressure, brightness, CO2 concentration, and volatile organic compounds (VOC) for detailed environmental control.
• KNX integration: Fully compatible with KNX systems, offering control over HVAC systems and providing key data such as air quality, light levels, and dew point for enhanced building management.
• Sleek, modern design: Designed to complement the True Presence family, offering a uniform ceiling-mounted look with concealed wiring.

Product Description:

The Steinel Multisensor Air KNX is a versatile environmental sensor designed to provide essential data for building management systems. It measures temperature, humidity, air pressure, brightness, CO2 levels, and volatile organic compounds (VOC), offering detailed insights into indoor air quality and environmental conditions. This sensor is an ideal choice for a variety of spaces, including classrooms, offices, conference rooms, and hotel rooms, where air quality and comfort are priorities.

Seamlessly integrated with KNX systems, the Multisensor Air KNX delivers precise data to control HVAC systems, manage lighting, and improve overall energy efficiency. With its modern design that complements the True Presence series, the sensor fits into any professional space while providing crucial environmental information. It can be easily configured through ETS software, Bluetooth, or bus control, making it a flexible solution for smart building automation.

Key Specifications:

• Detection Technology: CO2, air pressure, air humidity, temperature, VOC, and light sensors
• Dimensions: 33 x 123 x 123 mm
• Mounting Height: 2.8 m (optimal), maximum 4 m
• Integration: KNX-compatible for environmental monitoring and HVAC control
• Twilight Setting: Adjustable from 2 to 1000 lux, TEACH mode included
• Power Supply: KNX bus-powered, 30 V, 15 mA
• Power Consumption: 0.5 W
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Ceiling-mounted, concealed wiring
• Material: Plastic (RAL 9016 white)
• Additional Features: Dewpoint monitoring, air quality output, master/master and master/slave interconnection via KNX bus
