16 CHANNEL RELAY ( BLIND/SHUTTER CONTROL ) + 23 INPUTS

Key Features

• 16-Channel Multifunction Design: Operates as a 16-channel switching actuator or an 8-channel blinds/shutters actuator, offering adaptable functionality for a wide range of applications.

• High Load Capacity: Each channel includes a 16A relay with zero-crossing-point control, enabling safe, reliable switching of very high or capacitive loads.

• 23 Configurable Inputs: Features 23 total inputs—16 binary and 7 binary/analogue—each independently parameterisable via ETS software for custom integration.

• Binary and Analogue Input Support: Binary inputs support conventional voltage-free sensors or switches, while analogue inputs accept DINUY temperature probes (ST KNT 001 or ST KNT 002).

• Manual Control and Status Indication: A front keypad allows manual operation of each output, with integrated LEDs providing real-time output status feedback.

• Heating and Cooling Thermostats: Enables up to 7 independent thermostats for heating and/or cooling control, allowing flexible and precise climate management.

Product Description

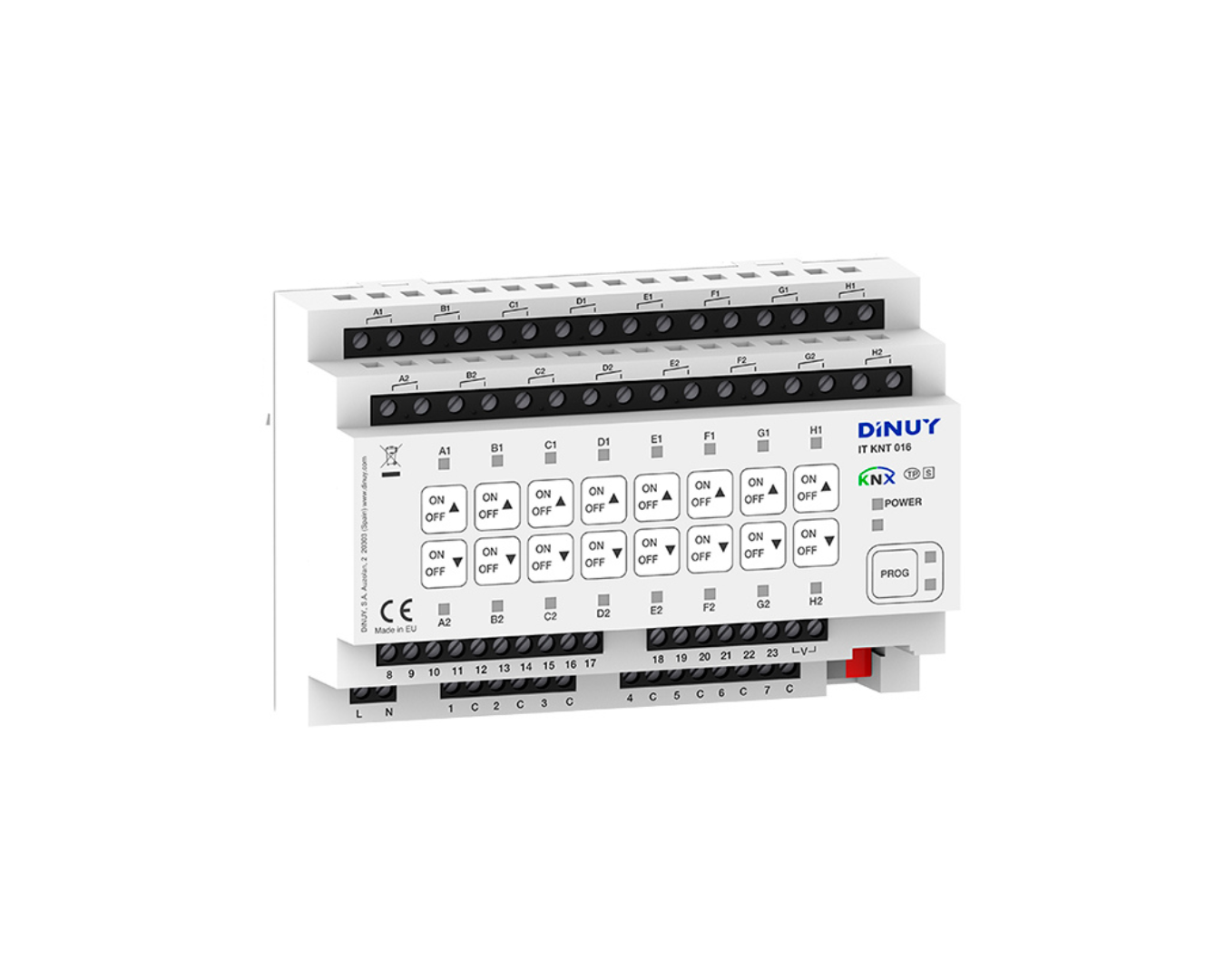

The DINUY 16-Channel KNX Multifunction Actuator is a powerful and flexible control solution designed for complex KNX installations. Its dual operating modes allow it to function either as a 16-channel switching actuator or an 8-channel blinds/shutters actuator, making it ideal for lighting, shading, and environmental automation.

Equipped with 16A zero-crossing relays, the actuator supports switching of very high or capacitive loads, ensuring long-lasting reliability. It includes 23 configurable inputs (16 binary and 7 binary/analogue), each adjustable through ETS software for project-specific requirements. The analogue inputs support DINUY’s ST KNT 001 and ST KNT 002temperature probes, enabling integrated thermal sensing and control.

A front keypad allows manual operation of outputs, while indicator LEDs provide clear visual feedback for monitoring. The actuator also supports up to 7 independent heating and cooling thermostats, with 16 logic functions available for scene creation, scheduling, and complex automation tasks. Designed for DIN-rail mounting (8 modules wide) and compatible with ETS5 or later, the DINUY 16-Channel KNX Multifunction Actuator delivers advanced performance, flexibility, and ease of integration for modern building automation systems.
