4 CHANNEL RELAY ( BLIND/SHUTTER CONTROL ) + 12 INPUTS

Key Features

• 4-Channel Multifunction Design: Operates as a 4-channel multi-function switching actuator or a 2-channel blinds/shutters actuator, providing flexibility for a wide range of control applications.

• High Load Capacity: Each channel includes a 16A relay with zero-crossing-point control, ensuring reliable and efficient switching of very high or capacitive loads.

• 12 Configurable Inputs: Incorporates 12 inputs—8 binary and 4 binary/analogue—each independently parameterisable through ETS software for customised operation.

• Binary and Analogue Input Support: Binary inputs accept conventional voltage-free sensors or switches, while analogue inputs are compatible with DINUY temperature probes (ST KNT 001 or ST KNT 002).

• Manual Control and LED Indication: A front keypad enables direct manual control of outputs, while integrated LEDs provide clear visual feedback for output status monitoring.

• Heating and Cooling Thermostats: Supports up to 4 independent heating and/or cooling thermostats, enabling advanced and flexible climate control capabilities.

Product Description

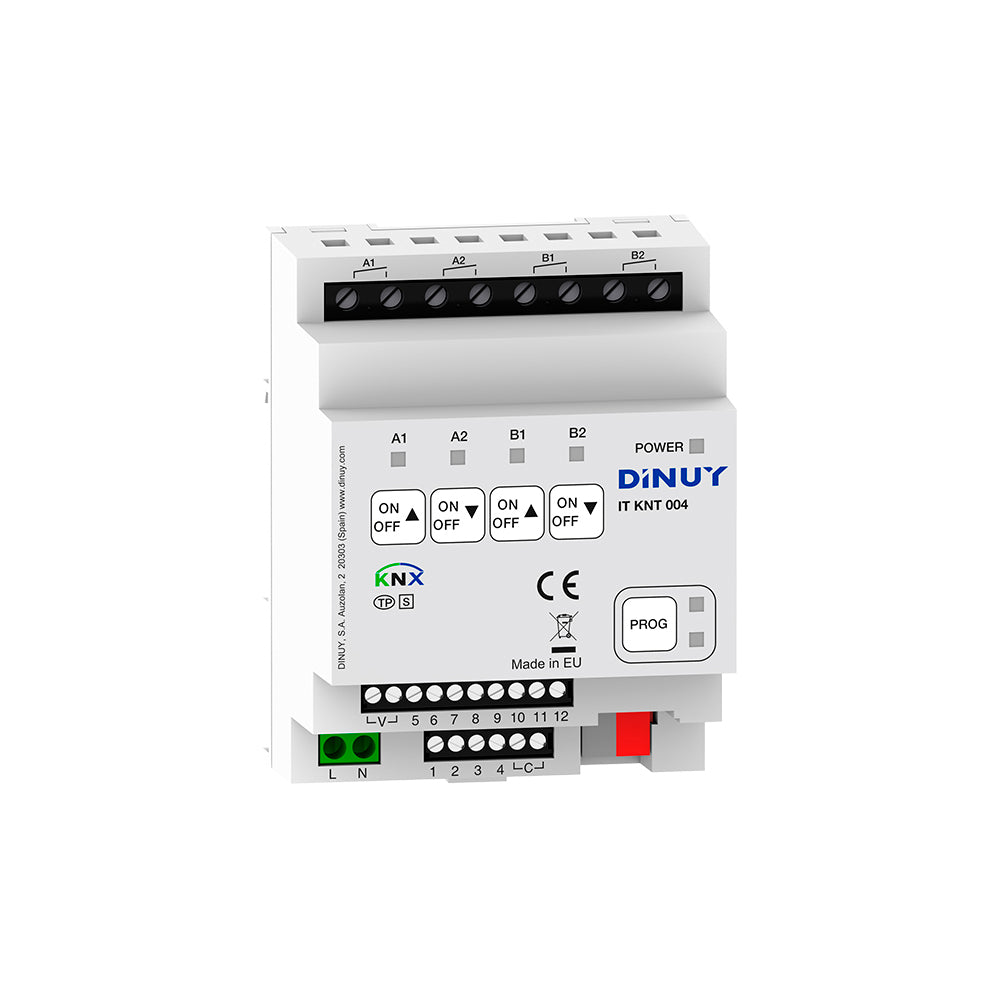

The DINUY 4-Channel KNX Multifunction Actuator delivers reliable and adaptable control for a wide variety of automation scenarios. It can function as a 4-channel multi-function switching actuator or a 2-channel blinds/shutters actuator, making it suitable for managing lighting, shading, and general electrical control tasks in both residential and commercial environments.

Designed for seamless KNX integration, the actuator ensures efficient communication with KNX sensors and building management systems, providing coordinated automation and real-time feedback. Equipped with 16A zero-crossing relays, it can handle demanding loads, including capacitive types, with durability and precision.

The device features 12 configurable inputs (8 binary and 4 binary/analogue) for flexible integration, as well as a front keypad for manual operation and LED indicators for status monitoring. Additional capabilities include up to 4 independent thermostats, 8 logic functions for advanced automation, and phased output connection for versatile wiring. Designed for DIN-rail mounting (4 modules wide) and configured via ETS5 or later, the DINUY 4-Channel KNX Multifunction Actuator combines high performance, intelligent control, and installation flexibility.
