8 CHANNEL DIMMER ( 8 X 300W )

Key Features

• Versatile Load Compatibility: Supports control of resistive, inductive, capacitive, and LED loads for maximum flexibility in lighting design.

• Phase-Cut Dimming Technology: Utilises leading and trailing-edge dimming, configurable via ETS parameters for seamless compatibility with various load types including:

 – 230V dimmable LED lamps

 – 12V dimmable LED lamps with electronic transformers

 – Incandescent and 230V halogen lamps

 – 12V halogen lamps with electronic transformers

• Independent Channel Control: Eight independent channels allow customised lighting scenarios or synchronised operation through the integrated sequencer.

• Manual Operation: Front-mounted keyboard enables direct control of each output channel for quick on-site adjustments and testing.

• Comprehensive Protection: Equipped with overload, short-circuit, and over-temperature protection with resettable operation to ensure system safety and reliability.

• Modular DIN-Rail Design: Compact 8-module form factor for DIN-rail mounting, ensuring efficient integration within electrical panels.

Product Description

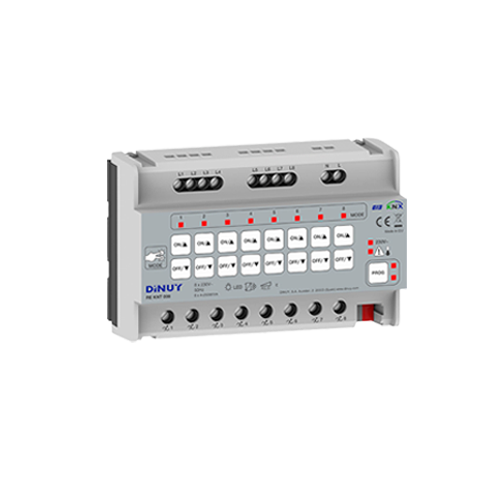

The DINUY RE KNT 008 8-Channel Dimming Actuator delivers high-performance and versatile dimming control for KNX-based lighting systems. Designed to handle multiple load types — including LED, halogen, and incandescent — it offers exceptional flexibility and compatibility for residential, commercial, and architectural applications. Employing phase-cut dimming with both leading and trailing-edge operation, this actuator ensures precise and flicker-free performance across a wide range of luminaires. Each of the eight channels can be configured independently, allowing users to create customised lighting scenes or coordinated group controls using the sequencer function. A front-mounted keyboard allows manual channel operation, providing convenience during commissioning or maintenance. Built-in protection mechanisms safeguard against overloads, short circuits, and overheating, with LED indicators offering quick visual fault diagnostics. With an 8-module DIN-rail design and programming via ETS5 or later versions, the DINUY RE KNT 008 combines reliability, flexibility, and ease of integration—making it a robust solution for advanced dimming applications within smart building environments.
