8 CHANNEL RELAY ( BLIND/SHUTTER CONTROL ) + 12 INPUTS

Key Features

• 8-Channel Multifunction Design: Operates as an 8-channel switching actuator or a 4-channel blinds/shutters actuator, offering versatile control for lighting, shading, and general automation.

• High Load Capacity: Each channel features a 16A relay with zero-crossing-point control, ensuring safe and reliable switching of heavy or capacitive loads.

• 12 Configurable Inputs: Includes 12 total inputs—8 binary and 4 binary/analogue—each independently parameterisable through ETS software for customised functionality.

• Binary and Analogue Input Support: Binary inputs support voltage-free sensors or switches, while analogue inputs are compatible with DINUY temperature probes (ST KNT 001 or ST KNT 002).

• Manual Control and LED Indication: Integrated front keypad enables manual control of outputs, with dedicated LEDs providing clear visual indication of output status.

• Heating and Cooling Thermostats: Supports configuration of up to 4 independent heating and/or cooling thermostats, delivering flexible climate control options.

Product Description

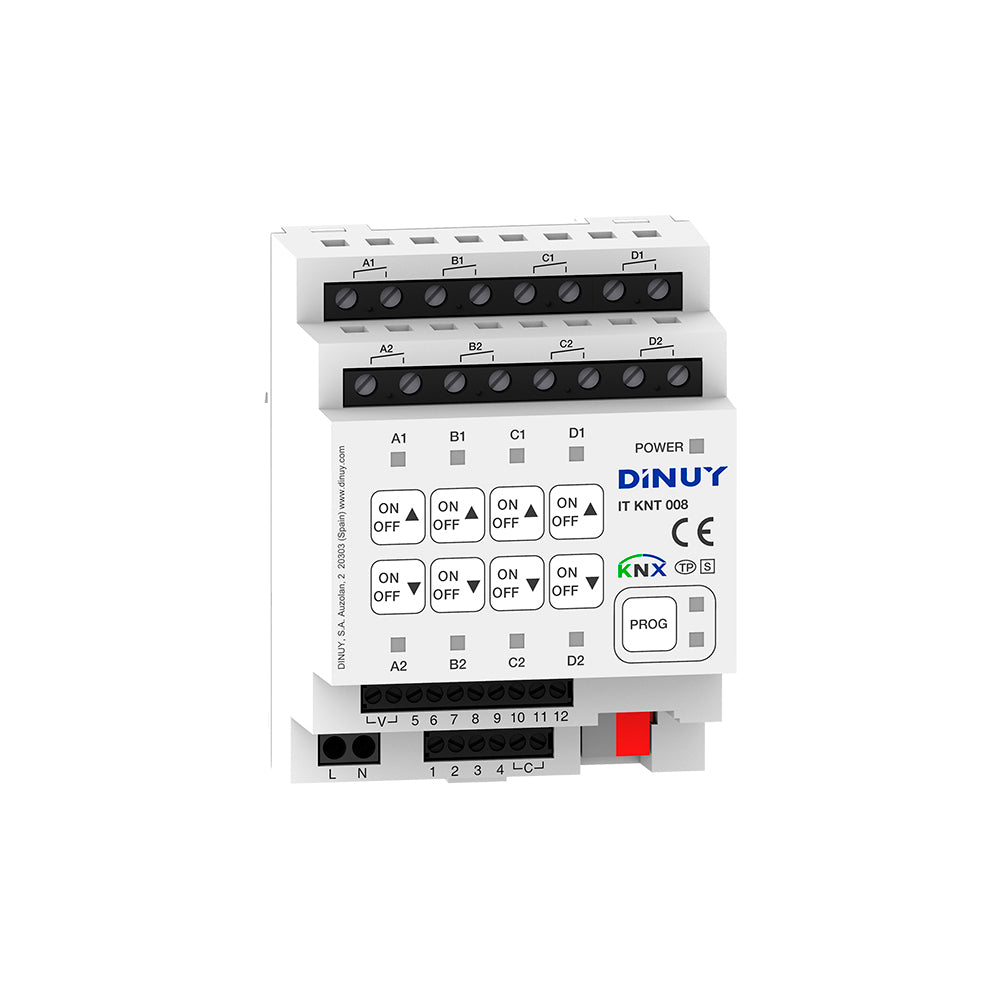

The DINUY 8-Channel KNX Multifunction Actuator is a compact, high-performance solution designed to deliver flexible control within KNX automation systems. It can operate as an 8-channel switching actuator or a 4-channel blinds/shutters actuator, making it ideal for managing lighting, blinds, and other electrical loads across residential and commercial environments.

Built with 16A relays featuring zero-crossing control, the actuator ensures reliable switching for heavy-duty or capacitive loads. It includes 12 configurable inputs (8 binary and 4 binary/analogue) that can be fully parameterised through ETS software to suit specific project requirements. The analogue inputs support DINUY temperature probes ST KNT 001 and ST KNT 002, enabling integrated temperature monitoring and control.

A front keypad provides independent manual operation of outputs, while LED indicators offer clear visual feedback. Additional features include up to 4 independent thermostats, 8 logic functions for advanced automation, and phased output connection options for flexible electrical distribution. Designed for DIN-rail mounting (4 modules wide) and compatible with ETS5 or later, the DINUY 8-Channel KNX Multifunction Actuator delivers efficient, reliable, and configurable control for any KNX installation.
