Bidirectional infrared transmitter with learning capability
SKU : GW640200
Key Features
Key Features
• Bidirectional Infrared: Emits IR commands from KNX and receives IR signals to control KNX elements.
- • IR Code Learning: Learns and stores up to 255 IR codes.
- • Multiple IR Devices: Controls several IR devices from one unit.
- • Logic and Timers: Includes an arithmetic/logic unit (ALU) with timers and counters.
- • IR Receiver and Emitter: Screw terminals for one IR receiver and one IR emitter, suitable for 40 kHz devices at up to 8 m.
- • Compact Installation: Measures 75 x 30 x 12 mm and fits in a universal distribution box.
Trade pricing and ordering are available to registered partners.
Description
Product Description

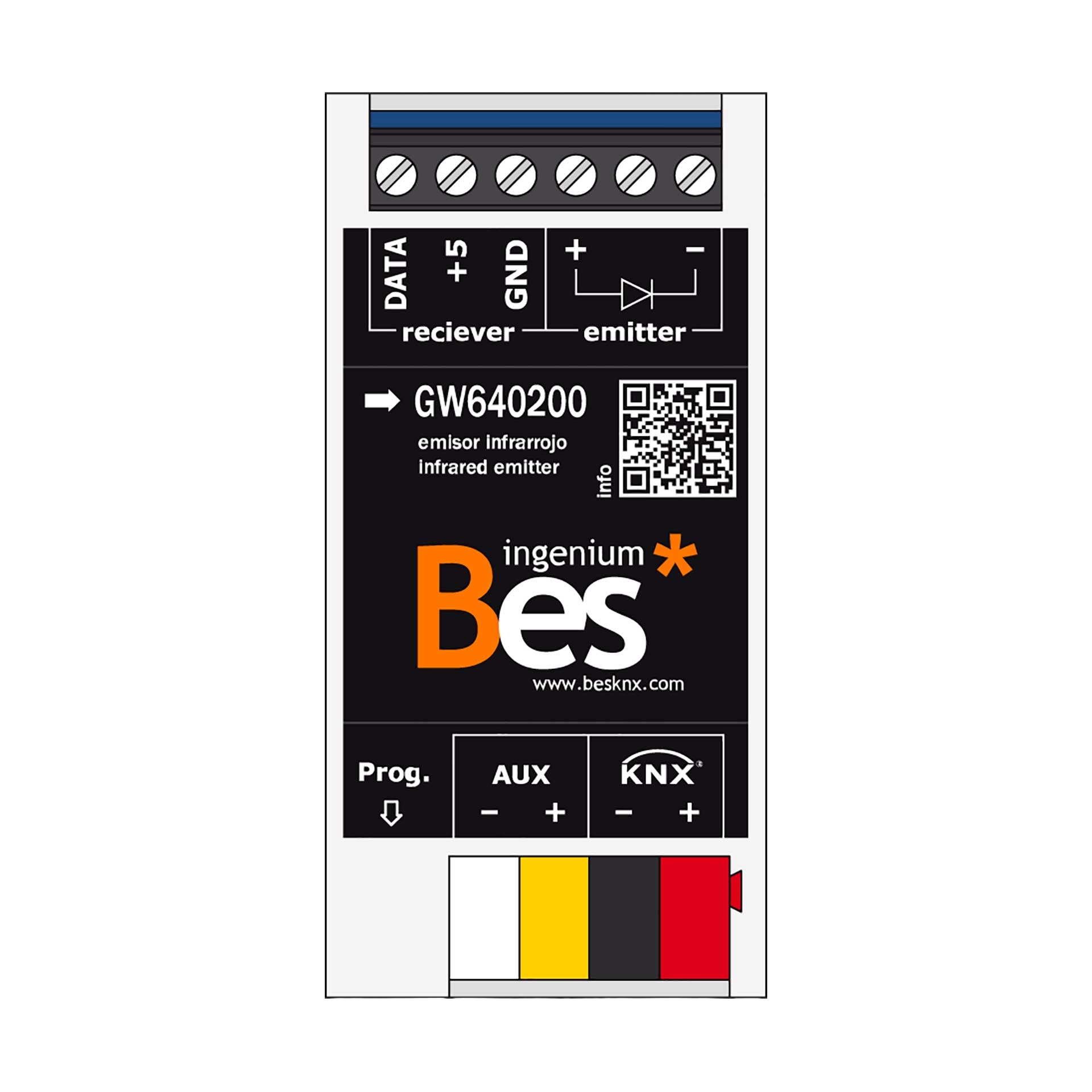

The GW640200 is a bidirectional KNX infrared transmitter with learning capability. It controls IR devices from KNX and KNX elements from IR devices, and one unit can control several IR devices.
The unit learns and stores up to 255 IR codes and includes an ALU with timers and counters. Screw terminals connect one IR receiver and one IR emitter, suitable for 40 kHz IR transmitters and receivers at a maximum distance of 8 m.
The unit is powered at 29 V DC from the auxiliary KNX power supply, drawing 20 mA, and connects to the KNX bus terminal. It measures 75 x 30 x 12 mm and installs in a universal distribution box; it can be hidden, provided the LED terminal stays visible and aimed at the IR devices. Operating temperature is -10 to +55 °C.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
