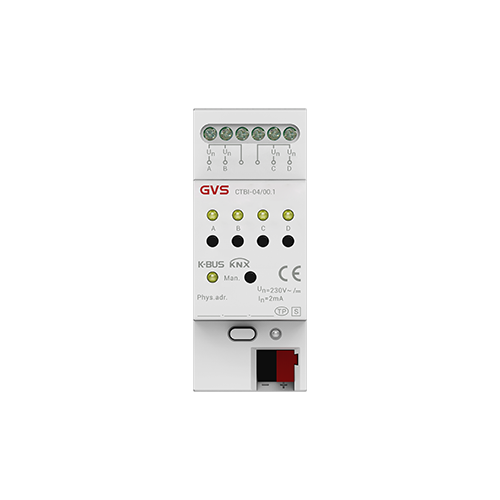

Binary Input With Secure 4-Fold, 2SU MDRC

Binary Input With Secure 4-Fold, 2SU MDRC

SKU : CTBI-04/00.S

Vendor: Brand : GVS

Key Features

    • Four configurable inputs: Connects conventional switches, push buttons or signal contacts to a KNX system.
    • Wide input voltage range: Accepts input signals from 9–265 V AC/DC.
    • Flexible KNX control: Supports switching, dimming, blind and shutter control, scene control, value sending, switching sequences and pulse counting.
    • Manual operation and clear status: A button and LED for each channel allow local input simulation and show the contact state.
    • ETS configuration: Each channel can be configured separately, with paired channel operation available for dimming and shutter control.
    • Compact DIN rail installation: KNX bus powered and designed for mounting on a 35 mm rail in a distribution board.

Trade pricing and ordering are available to registered partners.

Login to order Apply for Partner Access
Building or renovating a home? We’ll connect you with an integrator near you Specifying for a project? Talk to our team about the full range

Description

The GVS CTBI-04/00.1 KNX Binary Input brings four conventional switches, push buttons or signal contacts into a KNX home or building control system. Each input can be configured in ETS to perform functions such as lighting control, dimming, blind and shutter operation, scene control, value sending or pulse counting.

The device accepts input signals from 9–265 V AC/DC, making it suitable for a range of contact and signal applications. Channel buttons allow inputs to be simulated during manual operation, while individual LEDs display their status.

Powered by the KNX bus and mounted on a 35 mm DIN rail, the four channel module fits neatly into a distribution board for residential or commercial projects.
