Key Features

• Large 10.1” IPS Touch Display: High-resolution 1280×800 IPS touchscreen with an ultra-slim 8 mm profile, aluminium faceplate, and integrated ambience LED strip for a premium, modern interface.

• All-in-One KNX, Intercom & App Server: Combines KNX automation, SIP intercom functionality, and an embedded app server in a single device for centralised system control.

• Extensive KNX Channel Capacity: Supports up to 240 KNX channels (120 basic + 120 advanced), covering switching, dimming, shutters, scenes, RGB/RGBW/RGBCW, colour temperature, HVAC, energy metering, and air quality monitoring.

• Advanced Automation Functions: Includes up to 16 timing schedules, 8 group events, 8 logic functions, Human Centric Lighting (HCL), and alarm functionality for sophisticated automation scenarios.

• Integrated Connectivity & Power Options: Features IP connectivity for app control, SIP intercom with IP camera support, and flexible power via KNX bus with 48 V PoE or 24–30 V DC auxiliary supply.

• Flexible Installation & Customisation: Wall-mounted design compatible with 86×86 mm, 80×80 mm, and double Ø60 mm wall boxes, with easy UI customisation and multi-language support.

⸻

Product Description

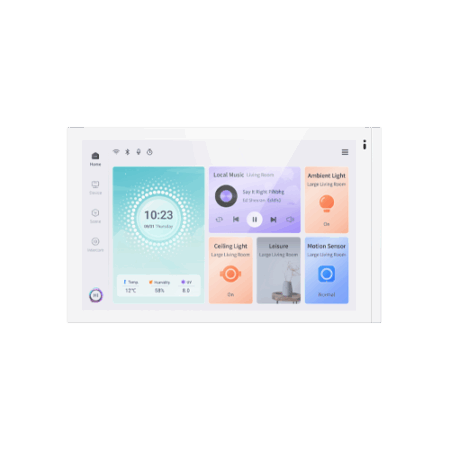

The GVS KNX Smart Touch S10 with Secure (KNX + SIP Intercom + App Server) is a high-end central control panel designed for advanced smart home and building automation projects. Featuring a large 10.1” IPS touchscreen with a slim aluminium profile and ambient LED lighting, it delivers an intuitive and visually striking user experience suitable for premium residential and commercial installations.

The S10 integrates full KNX control, SIP intercom functionality, and an embedded app server into a single powerful device, allowing centralised management of lighting, shading, HVAC, energy monitoring, multimedia, and security systems. With support for up to 240 KNX channels and advanced features such as scene control, logic operations, scheduling, and Human Centric Lighting, it provides exceptional flexibility for complex automation requirements.

Built-in temperature sensing enables responsive environmental control, while IP connectivity and SIP support allow seamless integration with mobile apps and IP cameras. Powered via KNX bus with PoE or DC auxiliary options, and designed for standard wall-box mounting, the GVS Smart Touch S10 combines performance, scalability, and elegant design—making it an ideal solution for sophisticated, future-ready KNX automation systems.
