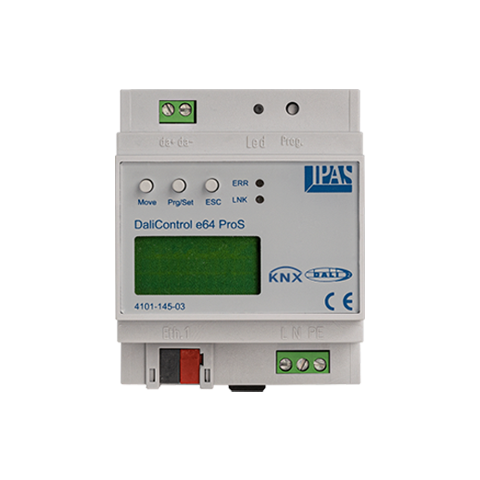

DaliControl e64 ProS

• Single DALI Output: Controls up to 64 electronic control gears (ECGs) via one DALI output, supporting both DALI-1 (EN 62386-102 ed1) and DALI-2 (EN 62386-102 ed2) standards.

• Multi-Master Functionality: Fully supports multi-master operation (EN 62386-103 ed2), allowing connection of multiple DALI-2 sensors such as motion and light detectors (EN 62386-303 / 304).

• Integrated DALI Power Supply: Provides the required DALI power directly for connected ECGs and sensors—no external DALI power supply needed.

• Flexible Group & Device Control: Enables individual control of up to 64 ECGs and grouping into up to 16 independent DALI groups for tailored lighting management.

• Emergency Lighting Support: Compatible with single-battery emergency luminaires (EN 62386-202) and central battery systems, ensuring safety and compliance.

• Direct KNX-to-DALI Communication: Translates KNX switching and dimming commands into DALI telegrams and sends DALI status/events back to KNX for synchronised automation.

• Compact DIN-Rail Design: 4 TE modular housing with screw terminals and RJ45 Ethernet ports for secure installation in distribution boards.

Product Description

The IPAS 4101-145-03 DALIcontrol e64 ProS is a professional KNX-to-DALI gateway designed to enable seamless integration of DALI lighting systems into advanced building automation networks. Acting as a multi-master DALI application controller, it supports both DALI-1 and DALI-2 devices, including motion and light sensors compliant with EN 62386-303 and EN 62386-304.

Capable of controlling up to 64 electronic control gears (ECGs) across 16 groups, the DALIcontrol e64 ProS ensures flexible and scalable lighting management. It also supports individual device addressing, making it ideal for complex lighting configurations.

The device includes a built-in DALI power supply, eliminating the need for external components, and ensures reliable communication and power for all connected luminaires and sensors. It also supports operation of single-battery emergency lights (EN 62386-202) and systems with central battery backup.

Through KNX integration, the gateway converts switching and dimming commands into DALI telegrams while sending feedback and events back to the KNX network enabling real-time synchronisation and monitoring.

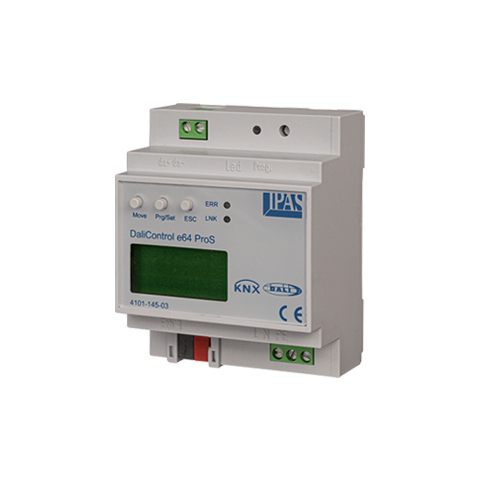

Housed in a 4 TE DIN-rail enclosure, the IPAS 4101-145-03 DALIcontrol e64 ProS offers simple installation with standard bus connectors, screw terminals for DALI/mains connections, and dual RJ45 Ethernet interfaces. Engineered for flexibility, reliability, and full DALI-2 compliance, it’s an ideal solution for modern lighting automation in commercial, architectural, and institutional environments.
