DUAL US KNX V3.1

Key Features:

• Ultrasonic detection: Offers reliable 360° motion detection with a range of up to 18 x 3 m, ideal for corridors and passageways.
• KNX integration: Fully compatible with KNX systems, providing intelligent control of up to 4 lighting channels and HVAC systems.
• Energy-saving modes: Includes advanced features like constant-lighting control, day/night switching, and IQ mode for energy-efficient operation.

Product Description:

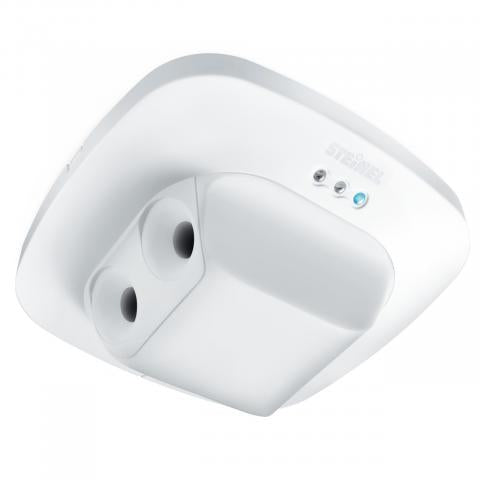

The Steinel Dual US KNX Presence Detector is designed to provide exceptional motion detection in corridor and passageway environments. With its ultrasonic technology, it offers 360° detection over an 18 x 3 metre area, ensuring accurate monitoring without being affected by temperature fluctuations. Its ability to "see around corners" makes it ideal for long, narrow spaces where comprehensive coverage is essential.

Integrated with KNX systems, the Dual US presence detector allows for intelligent control over lighting and HVAC systems, with advanced features like constant-lighting control, day/night switching, and energy-saving modes. The device can be easily configured via ETS software or Smart Remote, making it a versatile solution for building automation.

Key Specifications:

• Detection Technology: Ultrasonic sensor with light sensor
• Detection Range:
  • Radial: 18 x 3 m (54 m²)
  • Tangential: 18 x 3 m (54 m²)
• Detection Angle: 360°
• Mounting Height: Up to 3.5 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 10 to 1000 lux
• Time Setting: Adjustable from 10 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 17.5 mA
• Ambient Temperature Range: -25°C to +55°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
