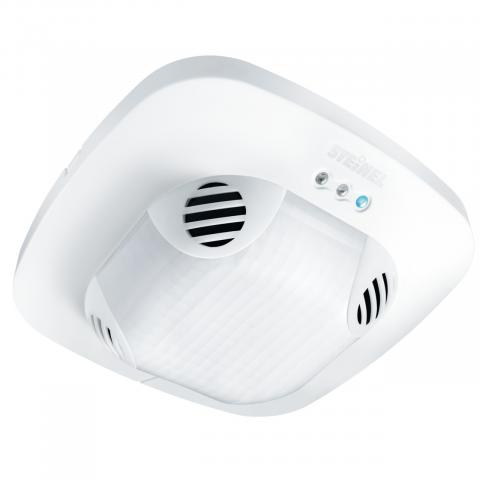

DUATECH DE KNX V3.1

Key Features:

• Dual technology: Combines ultrasonic and infrared sensors for maximum accuracy, offering 360° detection and reliable performance even behind objects.
• KNX integration: Fully compatible with KNX systems, featuring control for 4 lighting channels and HVAC systems, including constant-lighting control and day/night switching.
• Wide detection range: Detects presence within a Ø 6 m zone and motion up to Ø 10 m, making it ideal for offices, conference rooms, and classrooms.

Product Description:

The Steinel DualTech KNX Presence Detector combines the best of ultrasonic and passive infrared (PIR) technologies to deliver highly accurate presence detection. Designed for commercial spaces like offices, conference rooms, and classrooms, this detector provides reliable performance even when obstacles are present, thanks to its ultrasonic capability. The 360° detection angle ensures comprehensive coverage, with a presence detection zone of Ø 6 m and a motion detection range of up to Ø 10 m.

Seamlessly integrating with KNX systems, the DualTech detector offers intelligent control over lighting and HVAC systems. Key features include constant-lighting control, day/night switching, and energy-saving IQ mode. With easy installation and adjustable settings via ETS software or Smart Remote, this device is a versatile solution for building automation.

Key Specifications:

• Detection Technology: Ultrasonic and passive infrared sensors (PIR), light sensor
• Detection Range:
  • Presence: Ø 6 m (28 m²)
  • Motion: Ø 10 m (79 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 3.5 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 10 to 1000 lux
• Time Setting: Adjustable from 0 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 17.5 mA
• Ambient Temperature Range: -25°C to +55°C
• IP Rating: IP20 for indoor use
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
