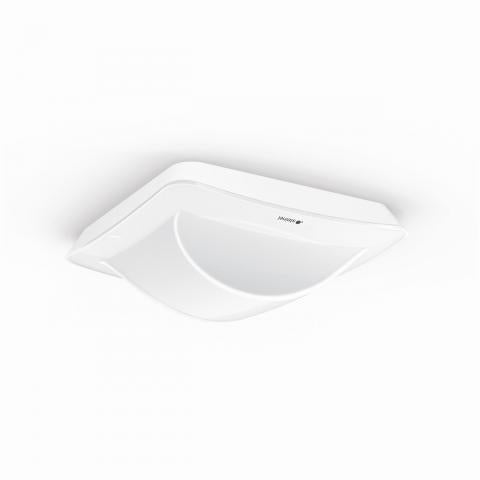

Hallway Dali-2 IPD Recessed

Long-range presence detector for hallways, DALI-2 Input Device, Bluetooth Mesh control.

Key Features:

• Optimised for hallways and corridors: Provides radial detection up to 25 m, making it ideal for long corridors and narrow passageways.
• DALI-2 Input Device integration: Seamlessly integrates with DALI-2 systems, offering smart control over lighting and energy management in professional environments.
• Concealed installation: Designed for in-ceiling concealed installation, ensuring a sleek and unobtrusive presence in indoor spaces like hallways and corridors.

Product Description:

The Steinel Hallway Presence Detector DALI-2 IPD is specifically designed to offer precise detection and control in long hallways and corridors. Featuring a 360° detection angle and a radial reach of up to 25 metres, the detector is optimised for narrow spaces, providing reliable presence detection and motion tracking. The sensor is capable of detecting through glass, wood, and stud walls, making it a versatile option for complex indoor environments.

This presence detector integrates seamlessly with DALI-2 systems, enabling advanced control over lighting and energy use through DALI-2 APC and IPD interfaces. The concealed installation ensures that the detector is unobtrusive while maintaining high performance in monitoring and controlling lighting. With features such as Bluetooth connectivity and master/slave interconnection, the device offers flexible configuration and management.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz) with light, temperature, and air humidity sensors
• Detection Range:
  • Radial: 25 x 3 m (75 m²)
  • Tangential: 25 x 3 m (75 m²)
• Detection Angle: 360° (for aisles)
• Mounting Height: 2.0 to 4.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, Bluetooth interconnection
• Power Supply: DALI bus-powered (12–23 V)
• Twilight Setting: No TEACH mode
• Operating Temperature: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, master/slave interconnection via Bluetooth and DALI bus​
