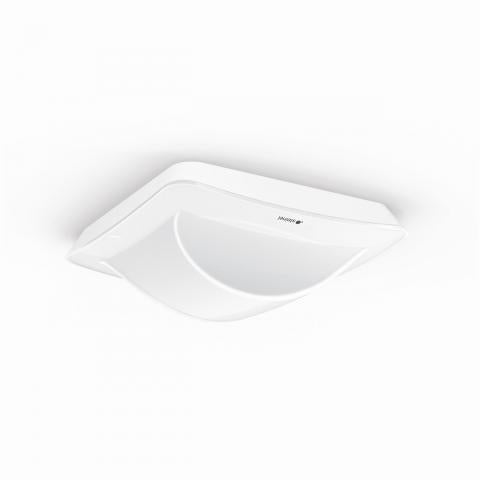

Hallway IP Recessed

Long-range presence detector for hallways, IP network control (REST/MQTT).

Key Features:

• Optimised for hallways and corridors: Provides precise radial detection up to 25 m, making it ideal for long hallways and passageways.
• KNX and Bluetooth integration: Fully compatible with KNX systems and includes Bluetooth technology for configuration and control, with additional interfaces for DALI-2 APC, DALI-2 IPD, and IP integration.
• Concealed installation: Designed for in-ceiling installation, offering a sleek, unobtrusive solution for indoor use in hallways and corridors.

Product Description:

The Steinel Hallway Presence Detector KNX is specifically designed to provide comprehensive motion detection for long corridors and hallways. Featuring a radial detection range of up to 25 metres, this sensor ensures reliable coverage for extended spaces. Its 360° detection angle and high-frequency sensor technology allow the detector to monitor areas through glass, wood, and stud walls, ensuring optimal detection performance in various environments.

This sensor integrates seamlessly with KNX systems, offering advanced control over lighting and HVAC systems. The device also includes Bluetooth connectivity for easy configuration and management. With interfaces for DALI-2 APC, DALI-2 IPD, and IP integration, the presence detector provides versatile options for smart building automation. The sleek, concealed ceiling installation ensures the sensor blends into any professional setting.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz) with light, temperature, and humidity sensors
• Detection Range:
  • Radial: 25 x 3 m (75 m²)
  • Tangential: 25 x 3 m (75 m²)
• Detection Angle: 360°
• Mounting Height: 2.0 to 4.0 m (optimal at 2.8 m)
• Integration: KNX, DALI-2, IP, Bluetooth
• Power Supply: Passive PoE, standard PoE (IEEE 802.3 af)
• Twilight Setting: No TEACH mode
• Constant-Light Control: No
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, interconnection via Bluetooth and LAN, capable of detecting through glass and wood
