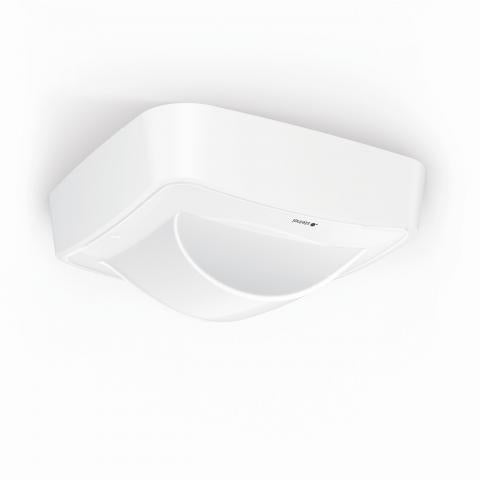

Hallway IP Surface

Long-range presence detector for hallways, IP network control (REST/MQTT).

Key Features:

• Optimised for hallways and corridors: Provides precise radial detection up to 25 m, making it ideal for long corridors and passageways.
• KNX and Bluetooth integration: Fully compatible with KNX systems, with additional interfaces for DALI-2 APC, DALI-2 IPD, IP integration, and Bluetooth technology for configuration and control.
• Surface-mounted installation: Designed for surface wiring and ceiling installation, suitable for indoor environments like hallways, corridors, and aisles.

Product Description:

The Steinel Hallway Presence Detector KNX is a professional-grade sensor designed specifically for long corridors and hallways. With a radial detection range of up to 25 metres, it offers reliable coverage of extended spaces. Its 360° detection angle and high-frequency sensor ensure optimal performance, even through glass, wood, and stud walls, making it perfect for areas with obstacles.

This presence detector integrates seamlessly with KNX systems, offering intelligent control over lighting and HVAC. It also includes interfaces for DALI-2 APC, DALI-2 IPD, and IP, allowing for versatile smart building automation. The device supports Bluetooth connectivity for easy setup and configuration via mobile devices. The surface-mounted design makes installation straightforward and unobtrusive, ensuring it fits seamlessly into professional environments.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz) with light, temperature, and air humidity sensors
• Detection Range:
  • Radial: 25 x 3 m (75 m²)
  • Tangential: 25 x 3 m (75 m²)
• Detection Angle: 360°
• Mounting Height: 2.0 to 4.0 m (optimal at 2.8 m)
• Integration: KNX, DALI-2 APC, DALI-2 IPD, Bluetooth, IP
• Power Supply: Passive PoE, standard PoE (IEEE 802.3 af)
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, interconnection via Bluetooth and LAN, detects through glass and wood
