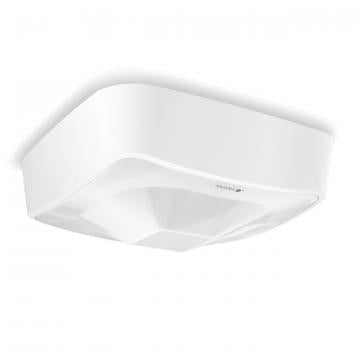

HF 360-2 DALI-2 IPD Surface

High-Frequency presence detector, DALI-2 Input Device, Bluetooth Mesh control.

Key Features:

• 360° high-frequency detection: Capable of detecting movement through materials like glass, wood, and stud walls with a range of up to Ø 12 m, ideal for stairwells, washrooms, and enclosed indoor areas.
• DALI-2 Input Device integration: Fully compatible with DALI-2 systems, allowing for easy integration and control of lighting systems through DALI-2 APC and IPD interfaces.
• Surface-mounted installation: Designed for surface wiring and ceiling installation, making it suitable for professional indoor environments that require discreet yet effective presence detection.

Product Description:

The Steinel HF 360-2 DALI-2 IPD Presence Detector offers cutting-edge high-frequency sensor technology, capable of detecting movement through materials like glass and wood. It has a detection range of up to Ø 12 m, making it the perfect solution for areas such as stairwells, washrooms, and corridors. The sensor is designed for surface-mounted installation, ensuring easy integration into commercial indoor spaces.

This presence detector is fully integrated with DALI-2 systems, making it ideal for controlling lighting and HVAC systems through DALI-2 APC and IPD interfaces. With additional features such as Bluetooth connectivity for configuration and interconnection options, it allows for easy setup and scalability. The device supports master/slave interconnection and provides a robust solution for energy-efficient building automation.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz) with light, temperature, and air humidity sensors
• Detection Range:
  • Radial: Ø 12 m (113 m²)
  • Tangential: Ø 12 m (113 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: DALI-2 APC, DALI-2 IPD, Bluetooth interconnection
• Power Supply: DALI bus-powered, 12.5 – 22 V
• Current Consumption: 84 mA (IEC 62386-101 standard), typical consumption at 16 V is 21 mA
• Twilight Setting: Adjustable from 2 to 2000 lux
• Operating Temperature: -25°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, master/slave interconnection via Bluetooth and DALI bus
