HF 360-2 IP Recessed

High-Frequency presence detector, IP network control (REST/MQTT).

Key Features:

• 360° high-frequency detection: Detects movement through glass, wood, and walls with a range of up to Ø 12 m, ideal for areas such as washrooms, stairwells, and corridors.
• IP integration: Designed with IP connectivity for advanced integration with smart building systems, allowing remote configuration, control, and monitoring.
• Concealed installation: Built for discreet in-ceiling mounting, offering a professional and unobtrusive solution for indoor commercial environments.

Product Description:

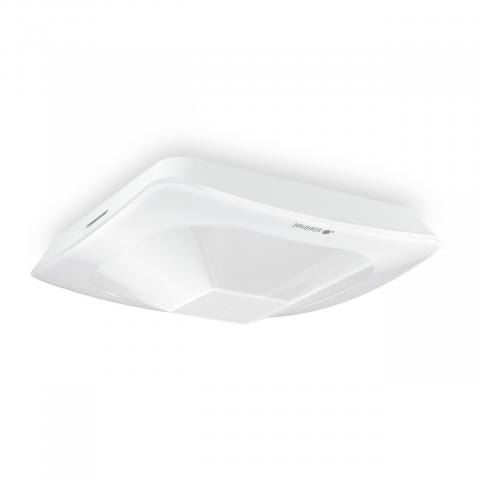

The Steinel HF 360-2 IP Presence Detector is an advanced high-frequency sensor designed for precise motion detection in indoor spaces like washrooms, stairwells, and hallways. It can detect movement through various materials such as glass and wood, covering an area of up to Ø 12 m. This makes it an excellent choice for spaces with architectural obstructions. The sensor’s sleek, concealed design ensures it fits seamlessly into commercial environments without disrupting the aesthetic.

This detector offers IP connectivity, enabling advanced integration with smart building systems for real-time remote monitoring, control, and configuration. With adjustable settings for constant-lighting control, twilight levels, and energy-saving modes, the HF 360-2 IP is an efficient solution for managing lighting and HVAC systems. The detector’s settings can be configured and adjusted easily via LAN or Bluetooth, providing flexibility for modern building automation needs.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz) with light, temperature, and humidity sensors
• Detection Range:
  • Radial: Ø 12 m (113 m²)
  • Tangential: Ø 12 m (113 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: IP connectivity, Bluetooth
• Power Supply: Passive PoE, standard PoE (IEEE 802.3 af)
• Twilight Setting: Adjustable from 2 to 2000 lux, TEACH mode
• Operating Temperature: -25°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, remote configuration via IP and Bluetooth, logic gate function
