HF 360-2 IP Surface

High-Frequency presence detector, IP network control (REST/MQTT).

Key Features:

• 360° high-frequency detection: Provides detection through materials like glass, wood, and stud walls with a range of up to Ø 12 m, ideal for stairwells, washrooms, and corridors.
• IP integration: Offers IP connectivity for remote configuration and monitoring, making it easy to manage through LAN and Bluetooth for smart building systems.
• Surface-mounted installation: Designed for surface wiring and ceiling installation, providing an unobtrusive, professional solution for indoor environments.

Product Description:

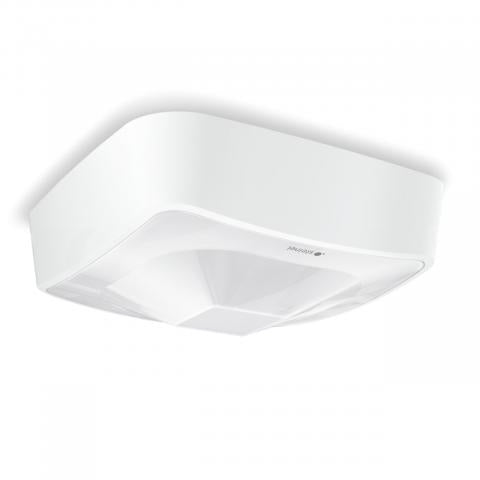

The Steinel HF 360-2 IP Presence Detector offers state-of-the-art high-frequency sensor technology, capable of detecting movement through materials such as glass, wood, and stud walls. With a detection range of up to Ø 12 m, it is perfect for spaces like washrooms, stairwells, and corridors. The sensor’s compact, surface-mounted design ensures easy integration into commercial spaces without compromising on aesthetics.

This presence detector integrates seamlessly with smart building systems via IP connectivity, allowing for remote configuration and real-time monitoring. It supports both Bluetooth and LAN interfaces, offering flexibility in setup and management. The HF 360-2 IP includes energy-saving features like adjustable twilight settings (2–2000 lux) and is designed to be easily scalable for various building automation needs.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz) with light, temperature, and air humidity sensors
• Detection Range:
  • Radial: Ø 12 m (113 m²)
  • Tangential: Ø 12 m (113 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: IP connectivity, Bluetooth, LAN
• Power Supply: Passive PoE, standard PoE (IEEE 802.3 af)
• Twilight Setting: Adjustable from 2 to 2000 lux
• Operating Temperature: -25°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Sneak-by guard, electronic scalability, interconnection via Bluetooth and
