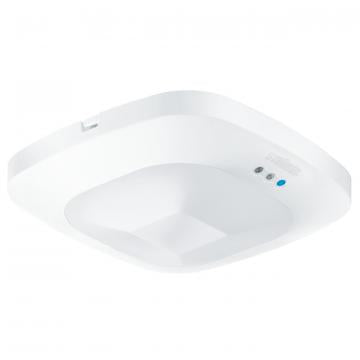

HF 360 DALI-2 INPUT DEVICE

Key Features:

• 360° high-frequency detection: Offers detection through materials like glass, wood, and stud walls, covering an area up to Ø 12 m, making it ideal for stairwells, washrooms, and enclosed indoor areas.
• DALI-2 Input Device integration: Fully compatible with DALI-2 systems, enabling the communication of sensor data to advanced lighting management systems such as LiveLink.
• Concealed installation: Designed for in-ceiling installation, providing a professional and unobtrusive presence in commercial indoor environments.

Product Description:

The Steinel HF 360 DALI-2 Presence Detector uses advanced high-frequency technology to detect movement through materials such as glass, wood, and walls, ensuring reliable motion detection in various indoor environments. With a coverage range of Ø 12 m, this sensor is perfect for spaces like stairwells, washrooms, and corridors. Its discreet, concealed ceiling installation ensures a sleek, unobtrusive presence while maintaining high-performance detection capabilities.

This presence detector integrates seamlessly with DALI-2 systems, enabling it to communicate sensor data to lighting management platforms like LiveLink. The DALI bus system supports master/slave interconnection, allowing for flexible configurations in larger installations. The HF 360 is designed to provide accurate motion detection and energy efficiency in commercial settings.

Key Specifications:

• Detection Technology: High-frequency sensor (5.8 GHz)
• Detection Range:
  • Radial: Ø 12 m (113 m²)
  • Tangential: Ø 12 m (113 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 3.5 m (optimal at 2.5 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V)
• Current Consumption:
  • Max: 42 mA (IEC 62386-101)
  • Typical: 8 mA (at 16 V input)
• Twilight Setting: Adjustable from 10 to 1000 lux
• Operating Temperature: -25°C to +55°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9010 white)
• Additional Features: Sneak-by guard, interconnection via DALI bus​
