HPD3 IP AP

Key Features:

• Advanced optical sensor technology: Capable of detecting, counting, and locating people within up to 5 defined zones, ideal for real-time space utilisation in large environments.
• Comprehensive environmental monitoring: Includes sensors for temperature, humidity, brightness, VOC, and CO2 levels, making it suitable for intelligent control of lighting, HVAC, and environmental conditions.
• IoT and KNX integration: Fully compatible with KNX systems and supports IoT connectivity via REST API, MQTT, and BacNet, offering flexible smart building automation.

Product Description:

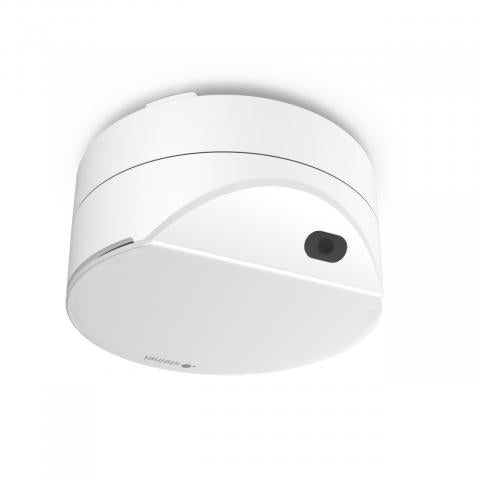

The Steinel HPD3 KNX Presence Detector is an innovative, surface-mounted sensor designed for professional indoor environments such as conference rooms, open-plan offices, lecture halls, and production facilities. Using high-precision optical sensor technology, the HPD3 detects, counts, and locates individuals in real-time, monitoring up to 5 independently configurable zones. The detector’s environmental sensors measure key factors like temperature, humidity, CO2, and VOC levels, ensuring optimal control over air quality and comfort.

The HPD3 integrates seamlessly with KNX systems, offering intelligent automation for lighting, HVAC, and environmental systems. In addition to KNX, it supports IoT connectivity via REST API, MQTT, and BacNet, enabling integration with smart building platforms. The surface-mounted design makes it ideal for both retrofitting and new installations, and its robust communication features ensure encrypted data transmission.

Key Specifications:

• Detection Technology: Optical sensor, high-frequency sensor (5.8 GHz), light, temperature, air humidity, VOC, CO2 sensors
• Detection Range:
  • Radial: Ø 10 m (96 m²)
  • Tangential: Ø 10 m (96 m²)
  • Presence: Ø 10 m (96 m²)
• Detection Angle: 120°
• Mounting Height: 2.3 to 5.0 m (optimal at 2.8 m)
• Integration: KNX-compatible and IoT-enabled (REST API, MQTT, BacNet)
• Power Supply: Passive PoE, standard PoE (IEEE 802.3 af)
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Surface-mounted on ceilings
• Material: Plastic (RAL 9016 white)
• Additional Features: Census of persons, constant-lighting control, zone-specific detection, encrypted communication, Bluetooth Mesh connectivity, real-time space utilisation tracking
