HPD3 IP UP

Key Features:

• Advanced optical detection: Uses high-precision sensors to detect and count people in up to 5 customisable detection zones, ideal for monitoring occupancy in real-time.
• Comprehensive environmental monitoring: Measures air quality, temperature, humidity, CO2, VOCs, and brightness for efficient environmental control.
• KNX and IoT integration: Fully compatible with KNX systems and supports IoT connectivity via REST API, MQTT, and BacNet for smart building automation.

Product Description:

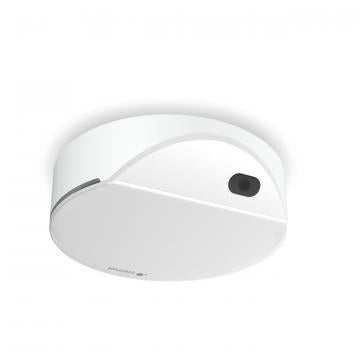

The Steinel HPD3 KNX Presence Detector is a state-of-the-art optical sensor designed to detect, count, and locate individuals in defined zones within a room. With its 120° detection angle and a range of up to 10 metres, it ensures accurate monitoring of occupancy in spaces such as lecture halls, open-plan offices, and conference rooms. The HPD3 also features sensors for temperature, humidity, VOCs, and CO2, making it a comprehensive solution for environmental monitoring and energy-efficient building management.

The detector integrates seamlessly with KNX systems, providing intelligent control over lighting, HVAC, and air quality systems. It supports constant-lighting control and presence-based automation. Additionally, IoT connectivity via REST API, MQTT, and BacNet allows for advanced data integration into smart building platforms. The HPD3 is designed for concealed ceiling installation, making it a discreet yet powerful tool for modern building automation.

Key Specifications:

• Detection Technology: Optical sensor, high-frequency sensor (5.8 GHz), light, temperature, air humidity, VOC, CO2 sensors
• Detection Range:
  • Radial: Ø 10 m (96 m²)
  • Tangential: Ø 10 m (96 m²)
  • Presence: Ø 10 m (96 m²)
• Detection Angle: 120°
• Mounting Height: 2.3 to 5.0 m (optimal at 2.8 m)
• Integration: KNX-compatible and IoT-enabled (REST API, MQTT, BacNet)
• Power Supply: Passive PoE, standard PoE (IEEE 802.3 af)
• Ambient Temperature Range: 0°C to +40°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9016 white)
• Additional Features: Census of persons, constant-lighting control, zone-specific detection, encrypted communication, Bluetooth Mesh connectivity
