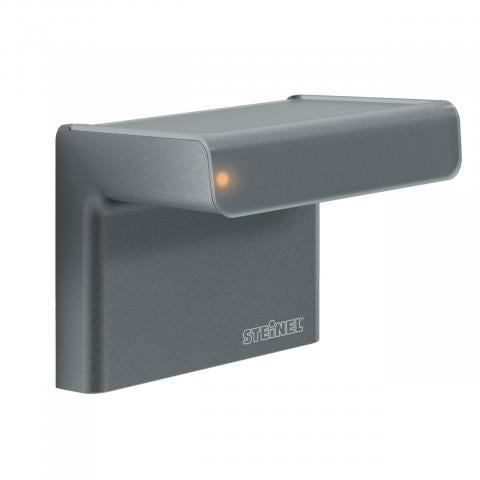

IHF 3D KNX 3.5 ANTHRACITE

Key Features:

• Intelligent high-frequency detection: Equipped with iHF 3D technology, it can distinguish between moving objects, avoiding false triggers caused by small animals or extreme temperatures. It has a detection range of up to 5 metres.
• KNX integration: Seamless integration with KNX systems for controlling lighting and environmental settings, including features like basic light level function, twilight setting, and presence detection logic.
• Surface-mounted installation: Designed for easy installation on walls, ideal for outdoor applications such as facades, carports, driveways, and terraces.

Product Description:

The Steinel iHF 3D KNX Motion Detector is a smart sensor designed to meet the demands of outdoor environments such as facades, patios, carports, and parking areas. With advanced iHF 3D technology, this detector distinguishes between various moving objects, avoiding false activations from small animals or temperature changes. Its 160° detection angle and 5-metre range make it ideal for monitoring small outdoor spaces.

Fully compatible with KNX systems, the iHF 3D provides intelligent control over lighting and environmental functions. Key features include a basic light level function, twilight setting, and presence detection logic. The detector can be configured via ETS software, Bluetooth, or an app, making installation and management easy. With its sleek anthracite finish and IP54 rating, the device is built to withstand the elements while maintaining a modern aesthetic.

Key Specifications:

• Detection Technology: Intelligent high-frequency sensor (5.8 GHz) with light sensor
• Detection Range:
  • Radial: 5 m (35 m²)
  • Tangential: 5 m (35 m²)
• Detection Angle: 160°
• Mounting Height: 1.8 to 2.0 m (optimal at 1.8 m)
• Integration: KNX-compatible for lighting and environmental control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 10 to 2000 lux
• Time Setting: Adjustable from 10 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 30 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for outdoor use
• Installation Type: Surface-mounted on walls
• Material: Plastic (RAL 7016 anthracite)
• Additional Features: Presence detection logic, sabotage protection, day/night function, master/slave interconnection, Teach mode
