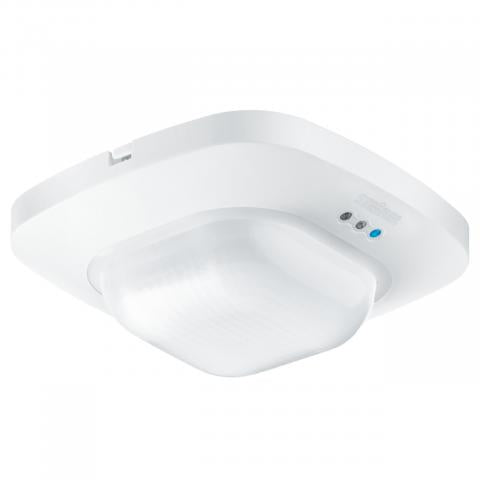

IR QUATTRO HD DALI-2 INPUT DEVICE

Key Features:

• Precise infrared detection: Provides high-precision detection with a range of 8 x 8 m for presence detection and 20 x 20 m for movement detection, ideal for large indoor spaces such as offices and classrooms.
• DALI-2 Input Device integration: Seamlessly integrates with DALI-2 systems, enabling communication of sensor data to advanced lighting management systems like LiveLink.
• Concealed installation: Designed for in-ceiling installation, ensuring an unobtrusive, professional appearance suitable for medium to large office spaces, conference rooms, and sports halls.

Product Description:

The Steinel IR Quattro HD DALI-2 IPD Presence Detector offers superior infrared detection technology, providing precise monitoring for large indoor spaces such as classrooms, open-plan offices, and high-bay warehouses. With its 4800 switching zones, the detector covers a presence detection area of 8 x 8 metres and a movement detection range of 20 x 20 metres, making it ideal for high-traffic areas where accurate detection is essential.

This sensor integrates seamlessly with DALI-2 systems, allowing it to communicate sensor data to higher-level lighting management platforms such as LiveLink. The IR Quattro HD features a master/slave interconnection, supporting flexible configurations in larger installations. The concealed in-ceiling installation ensures it remains unobtrusive while providing high-performance detection.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Presence: 8 x 8 m (64 m²)
  • Movement: 20 x 20 m (400 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 10.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection
• Power Supply: DALI bus-powered (12 – 22.5 V)
• Current Consumption:
  • Max: 42 mA (IEC 62386-101)
  • Typical: 6 mA (at 16 V input)
• Twilight Setting: Adjustable from 10 to 1000 lux
• Operating Temperature: -25°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9010 white)
• Additional Features: Sneak-by guard, interconnection via DALI bus, 4800 switching zones​
