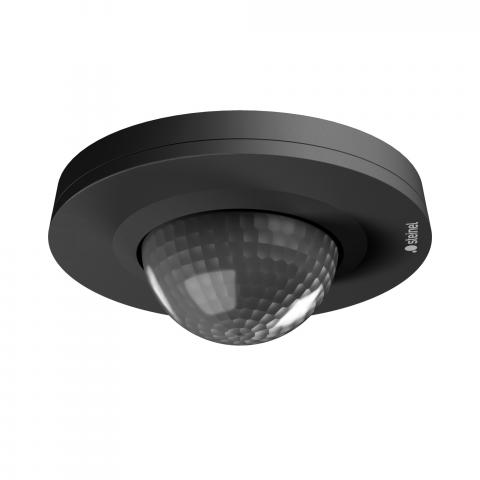

IR QUATTRO HD KNX V3.1

Key Features:

• High-definition 360° presence detection: Four sensor zones for precise monitoring of large rooms and open spaces.
• Seamless KNX integration: Perfect for intelligent energy management and lighting control in smart buildings.
• Customisable settings: Fine-tune detection for energy efficiency and comfort tailored to specific project requirements.

Product Description:

The Steinel Quattro HD KNX Presence Detector offers advanced high-definition presence detection, designed to meet the demands of modern building automation. With its unique four-zone sensor technology, it provides pinpoint accuracy in detecting movement across large areas, making it an ideal solution for spaces like offices, conference rooms, and educational environments.

The Quattro HD KNX seamlessly integrates into KNX building automation systems, allowing for intelligent control of lighting, HVAC, and energy management. Its customisable detection settings provide architects, consultants, and system integrators with the flexibility to optimise performance for energy efficiency and occupant comfort. Elevate your building’s functionality and sustainability with this state-of-the-art presence detector.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with 4 sensor zones
• Detection Angle: 360°
• Detection Range: Up to 64 m² (presence detection)
• Mounting Height: Up to 10 m
• Integration: Fully KNX-compatible
• Lighting Channels: 2 channels for lighting control
• HVAC Channels: 2 channels for heating, ventilation, and air conditioning control
• Ambient Light Level: Adjustable from 10 to 2000 lux
• Time Delay: Adjustable from 1 second to 60 minutes
• Operating Voltage: 30 V DC (KNX bus-powered)
• Ambient Temperature Range: -25°C to +55°C
• IP Rating: IP20 for indoor use
