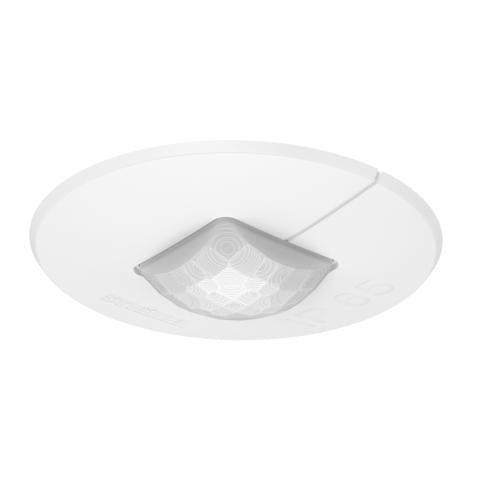

IR QUATTRO MICRO DALI-2 INPUT DEVICE

Key Features:

• Compact design: Small, discreet sensor with a micro precision lens (15 x 15 mm), perfect for spaces where minimal visual impact is required.
• 360° infrared detection: Covers up to 36 m² tangentially and 16 m² for presence detection, ideal for small offices, hotel rooms, and washrooms.
• DALI-2 Input Device integration: Enables sensor data communication to advanced lighting management systems like LiveLink, allowing smart building automation.

Product Description:

The Steinel IR Quattro Micro DALI-2 Presence Detector is a highly compact sensor designed for precise presence detection in smaller indoor environments, such as one-person offices, hotel rooms, and washrooms. Its 360° infrared detection provides comprehensive coverage, with a tangential range of up to 6 x 6 m and a presence detection range of 4 x 4 m. Despite its small size, the IR Quattro Micro offers exceptional performance, making it a popular choice for spaces that demand unobtrusive installation.

Fully compatible with DALI-2 systems, this detector communicates real-time sensor data to lighting management systems like LiveLink, supporting advanced energy-efficient control. The device is built for concealed ceiling installation and features IP65 protection, making it suitable even for moisture-exposed areas. With a discreet profile and powerful detection capabilities, the IR Quattro Micro is an excellent solution for smart building automation in compact spaces.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Presence: 4 x 4 m (16 m²)
  • Tangential: 6 x 6 m (36 m²)
• Detection Angle: 360°
• Mounting Height: 2.0 to 5.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V)
• Current Consumption:
  • Max: 12 mA (IEC 62386-101)
  • Typical: 4 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux, TEACH mode included
• Operating Temperature: -25°C to +55°C
• IP Rating: IP65 for moisture-exposed environments
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Constant-lighting control, sneak-by guard, master/slave interconnection​
