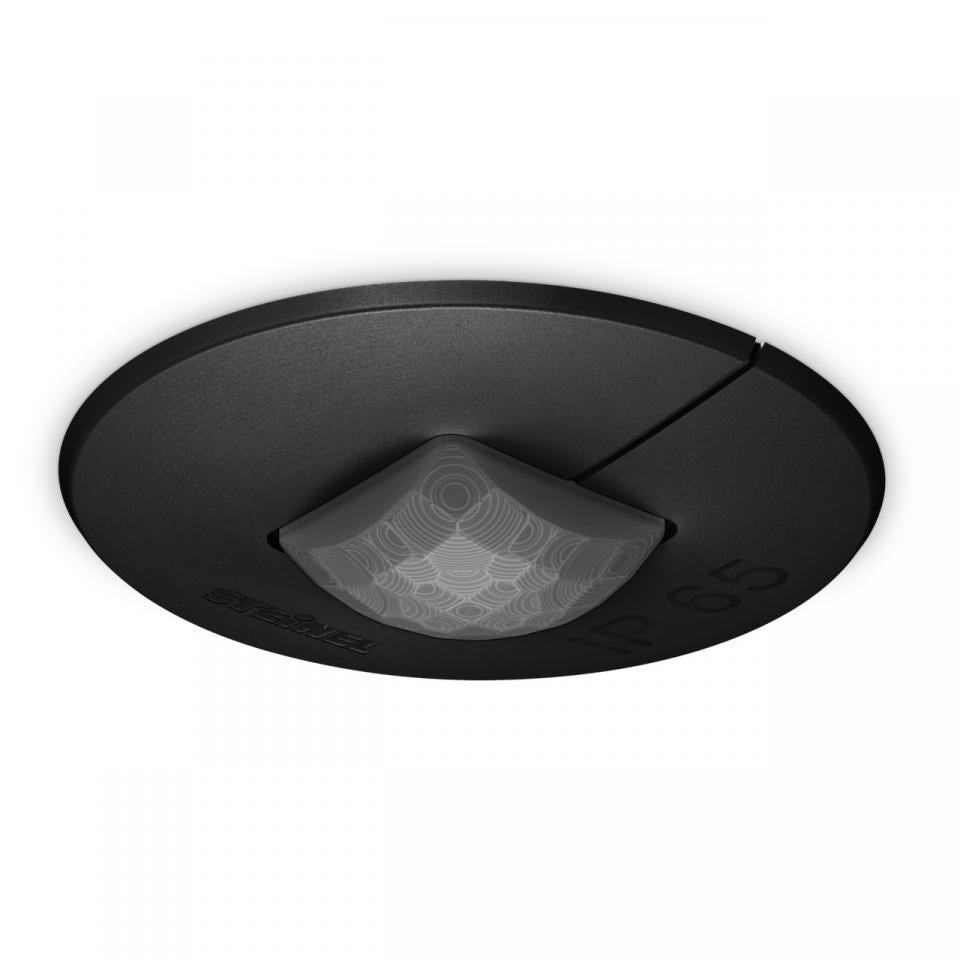

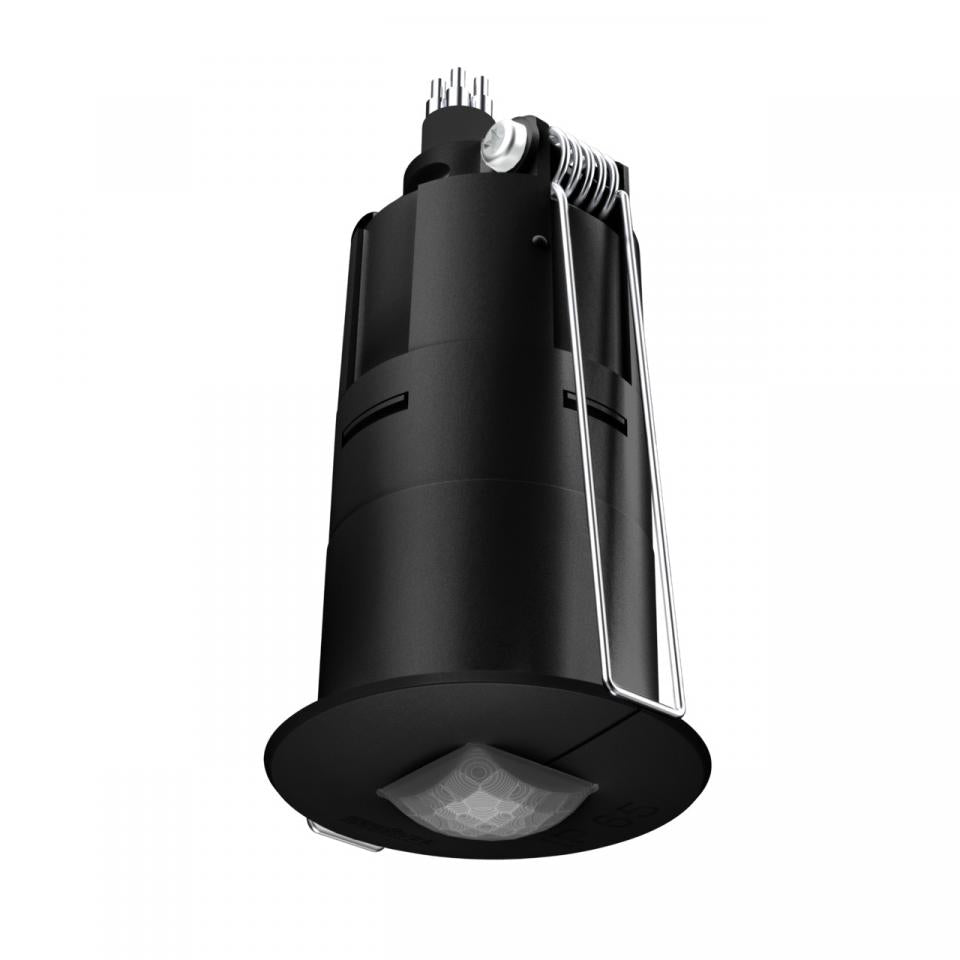

IR QUATTRO MICRO KNX V3.1 BLACK LENS

Key Features:

• Compact design: Discreet and small, with a micro precision lens (15 x 15 mm), offering minimal visual impact while maintaining high performance.
• 360° infrared detection: Covers a presence detection area of up to 4 x 4 m and a tangential range of 6 x 6 m, ideal for small spaces such as hotel rooms, washrooms, and offices.
• IP65-rated protection: Suitable for rooms exposed to moisture, ensuring durability in challenging indoor environments.

Product Description:

The Steinel IR Quattro Micro KNX Presence Detector combines compact design with high performance, meeting the needs of architects and planners seeking a sensor that is as discreet as possible. With its micro precision lens and a low overall height after installation, the IR Quattro Micro offers reliable presence detection in a 360° range, covering up to 36 m². Its IP65 rating makes it suitable for moisture-exposed areas such as washrooms, ensuring both reliability and resilience.

This presence detector integrates seamlessly with KNX systems, offering intelligent control over lighting, HVAC, and other building systems. It features constant-lighting control, a day/night function, and a basic light level function, ensuring energy efficiency and comfort. The device is configurable via ETS software or Smart Remote, providing flexible installation options for various professional applications.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with photo-cell controller
• Detection Range:
  • Presence: 4 x 4 m (16 m²)
  • Tangential: 6 x 6 m (36 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 5 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 255 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 30 V (10 mA)
• Power Consumption: 0.5 W
• Ambient Temperature Range: -25°C to +55°C
• IP Rating: IP65 for indoor use
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, logic gate interconnection, Teach mode
