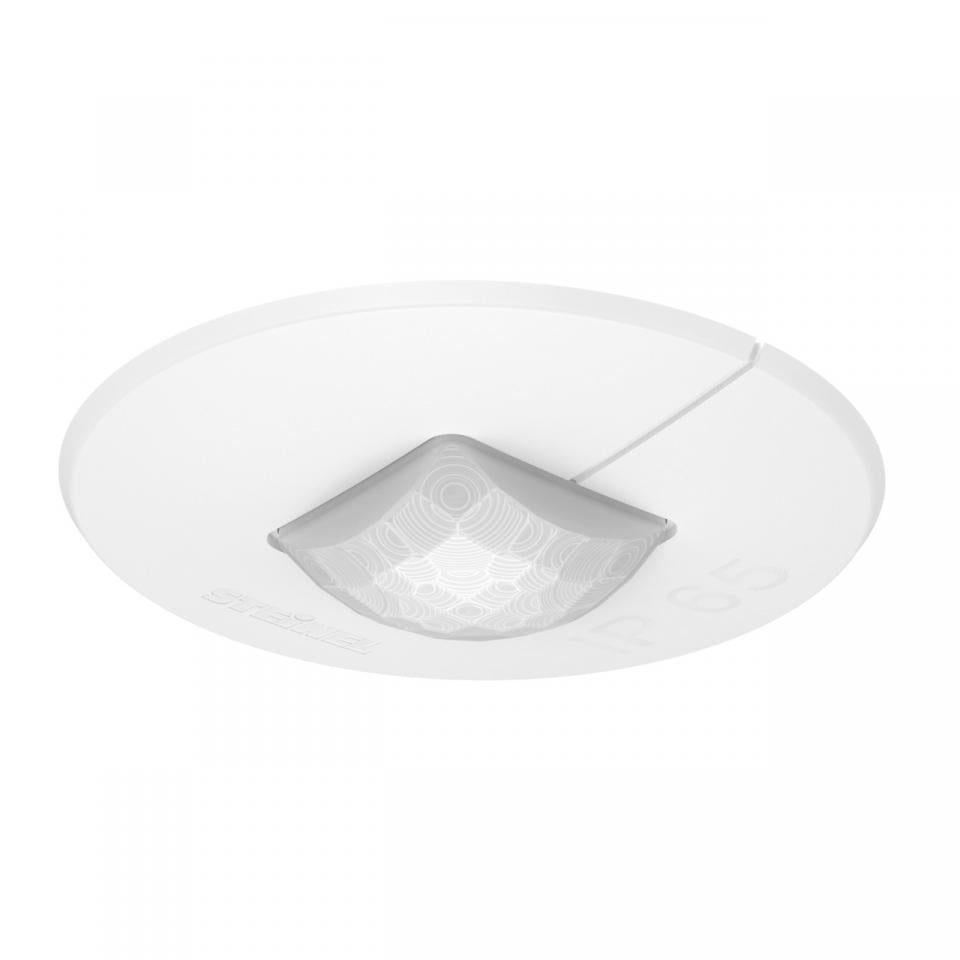

IR QUATTRO MICRO KNX V3.1 WHITE

Key Features:

• Compact and discreet design: Features a micro precision lens (15 x 15 mm), making it an ideal choice for architects seeking minimal visual impact.
• 360° presence detection: Covers an area of up to 36 m² with excellent performance, suitable for spaces requiring precise detection.
• IP65 rating: Designed for installation in moisture-exposed rooms, ensuring durability and protection.

Product Description:

The Steinel IR Quattro MICRO KNX Presence Detector (V3) is a small yet powerful solution for precise presence detection. Designed to meet the needs of architects and planners looking for a subtle sensor, its compact dimensions and micro precision lens make it nearly invisible when installed. Despite its small size, the IR Quattro MICRO provides reliable 360° coverage for areas up to 36 m², making it ideal for individual offices, hotel rooms, and washrooms.

With an IP65 rating, this presence detector is suitable for environments exposed to moisture, such as bathrooms and utility rooms. The sensor integrates seamlessly with KNX building automation systems, offering control over lighting and HVAC systems with advanced features like constant-lighting control, twilight settings, and energy-saving modes. It's the perfect solution for professionals who demand performance and aesthetics.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR)
• Detection Range:
  • Presence: 4 x 4 m (16 m²)
  • Tangential: 6 x 6 m (36 m²)
  • Radial: 4 x 4 m (16 m²)
• Detection Angle: 360°
• Mounting Height: 2 to 5 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 4 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 60 seconds to 255 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: 30 V DC (KNX bus-powered, 10 mA)
• Power Consumption: 0.5 W
• Ambient Temperature Range: -25°C to +55°C
• IP Rating: IP65 for moisture protection
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
