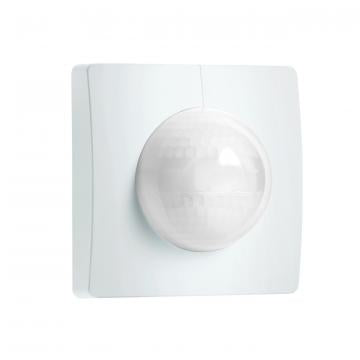

IS 3180 DALI-2 INPUT DEVICE SQUARE RECESSED

Key Features:

• 180° infrared detection: Provides reliable coverage with a maximum range of 20 m (tangential) and 4 m (radial), ideal for large indoor and outdoor areas such as corridors and car parks.
• DALI-2 Input Device integration: Communicates sensor data to advanced lighting management systems like LiveLink, ensuring efficient lighting control and energy management.
• Concealed installation: Designed for concealed wall and corner installation, offering an unobtrusive solution for both indoor and outdoor applications.

Product Description:

The Steinel IS 3180-E DALI-2 Motion Detector is engineered for large spaces, offering 180° infrared detection with a maximum range of 20 metres tangentially and 4 metres radially. This motion detector is ideal for high-traffic areas such as corridors, stairwells, car parks, and courtyards. Its robust design and wide detection range ensure reliable motion detection in various settings.

This detector integrates seamlessly with DALI-2 systems, allowing it to communicate sensor data to lighting management systems like LiveLink. It supports master/slave interconnection via the DALI bus, enabling scalable installation configurations. The concealed design makes it perfect for indoor and outdoor use, providing a professional and unobtrusive solution.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: Ø 4 m (25 m²)
  • Tangential: Ø 20 m (628 m²)
• Detection Angle: 180°
• Mounting Height: 1.8 to 2.5 m (optimal at 2 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V, 50 – 60 Hz)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed wall and corner installation
• Material: Plastic (RAL 9003 white)
• Additional Features: 448 switching zones, sneak-by guard, master/slave interconnection​
