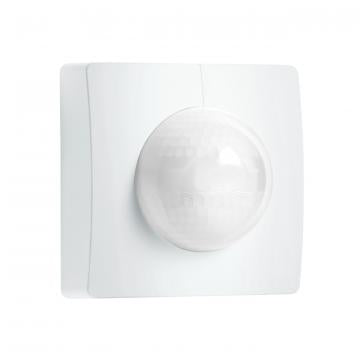

IS 3180 DALI-2 INPUT DEVICE SQUARE SURFACE

Key Features:

• 180° infrared detection: Offers comprehensive motion detection with a maximum range of 20 m (tangential) and 4 m (radial), ideal for monitoring large areas both indoors and outdoors.
• DALI-2 Input Device integration: Allows seamless communication of sensor data to advanced lighting management systems like LiveLink, ensuring optimal lighting control and energy efficiency.
• Surface-mounted installation: Designed for surface wiring, wall, or corner installation, suitable for large spaces such as corridors, stairwells, car parks, and building exteriors.

Product Description:

The Steinel IS 3180-E DALI-2 Motion Detector is a high-performance infrared sensor designed for large indoor and outdoor spaces such as multi-storey car parks, courtyards, and corridors. With a 180° detection angle and a maximum tangential range of 20 metres, this motion detector offers reliable coverage of expansive areas. Its robust construction ensures long-lasting performance even in demanding environments.

The detector integrates seamlessly with DALI-2 systems, enabling efficient communication of sensor data to advanced lighting control platforms such as LiveLink. This helps optimise lighting and energy usage based on real-time motion detection. The IS 3180-E is designed for surface-mounted installation, making it ideal for wall or corner installations in both indoor and outdoor spaces. It features IP54 protection, ensuring durability in various weather conditions.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: Ø 4 m (25 m²)
  • Tangential: Ø 20 m (628 m²)
• Detection Angle: 180°
• Mounting Height: 1.8 to 2.5 m (optimal at 2 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V, 50 – 60 Hz)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP54 for outdoor and indoor use
• Installation Type: Surface-mounted on walls or corners
• Material: Plastic (RAL 9003 white)
• Additional Features: 448 switching zones, master/slave interconnection, sneak-by guard​
