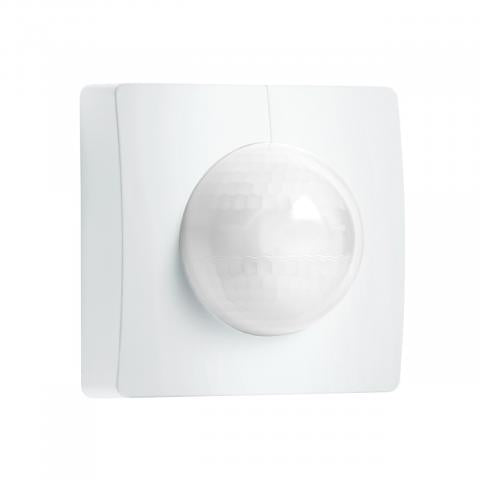

IS 3180 KNX V3.1 SQUARE SURFACE

Key Features:

• 180° infrared detection: Offers a maximum tangential range of 20 m and a radial range of 4 m, ideal for large indoor and outdoor spaces like corridors, car parks, and building exteriors.
• KNX integration: Fully integrated with KNX systems, enabling intelligent control of lighting and HVAC systems with features such as constant-lighting control, twilight setting, and energy-saving modes.
• Surface-mounted installation: Designed for easy installation with large terminal compartments, suitable for wall or corner mounting in both indoor and outdoor environments.

Product Description:

The Steinel IS 3180-E KNX Motion Detector is a high-performance motion sensor designed for large-scale spaces such as corridors, multi-storey car parks, and building exteriors. Its 180° detection angle and reach of up to 20 m tangentially and 4 m radially make it ideal for monitoring high-traffic areas. The sensor is equipped with 448 switching zones, ensuring precise motion detection, reducing false activations.

This motion detector integrates seamlessly with KNX systems, providing intelligent control over lighting and HVAC. Features include constant-lighting control, a basic light level function, and day/night switching. The device supports energy-saving operations with TEACH mode, allowing for automatic adjustment of twilight settings. The IS 3180-E is designed for surface-mounted installation, making it perfect for use in indoor and outdoor environments.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: Ø 4 m (25 m²)
  • Tangential: Ø 20 m (628 m²)
• Detection Angle: 180°
• Mounting Height: 1.8 to 2.5 m (optimal at 2 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux, with TEACH mode
• Time Setting: Adjustable from 5 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 12.5 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on walls, corners
• Material: Plastic (RAL 9003 white)
• Additional Features: Constant-lighting control, day/night function, logic gate interconnection, master/slave interconnection, sneak-by guard
