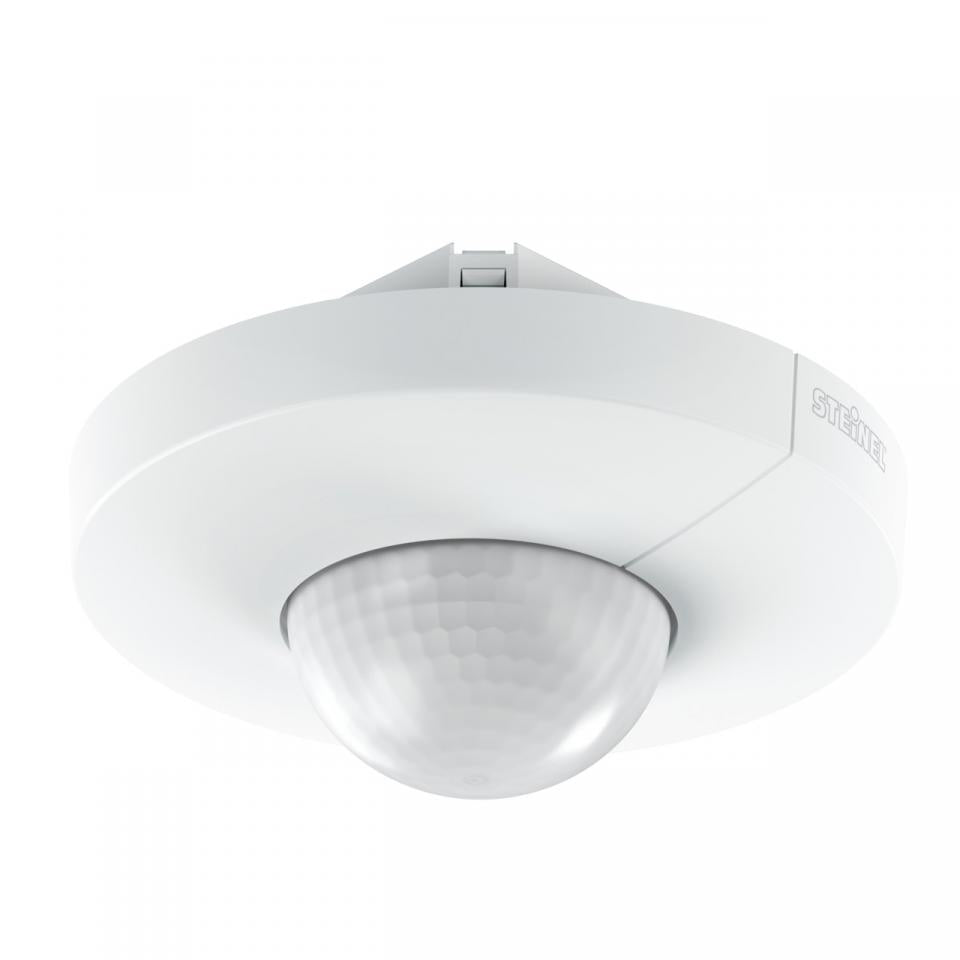

IS 3360 DALI-2 INPUT DEVICE ROUND RECESSED

Key Features:

• 360° infrared detection: Provides comprehensive coverage with a range of 20 m tangentially and 8 m radially, making it ideal for large spaces such as car parks, warehouses, and sports halls.
• DALI-2 Input Device integration: Fully compatible with DALI-2 systems, enabling sensor data communication to advanced lighting management systems like LiveLink.
• Concealed installation: Designed for in-ceiling installation, ensuring an unobtrusive, professional look suitable for indoor environments requiring reliable motion detection.

Product Description:

The Steinel IS 3360-R DALI-2 Motion Detector is a high-performance sensor designed for professional applications in large indoor spaces such as multi-storey car parks, warehouses, and sports halls. Its 360° infrared detection offers coverage over a 20 m tangential range and an 8 m radial range, ensuring comprehensive monitoring with 1416 switching zones for precise detection.

This motion detector integrates seamlessly with DALI-2 systems, allowing sensor data to be communicated to advanced lighting management platforms such as LiveLink. With support for master/slave interconnection via the DALI bus, the IS 3360-R offers flexibility in larger installations. Designed for concealed ceiling installation, it provides high-level performance while maintaining an unobtrusive appearance.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: Ø 8 m (50 m²)
  • Tangential: Ø 20 m (1257 m²)
  • Presence: Ø 3 m (7 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V, 50 – 60 Hz)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: 1416 switching zones, master/slave interconnection, sneak-by guard​
