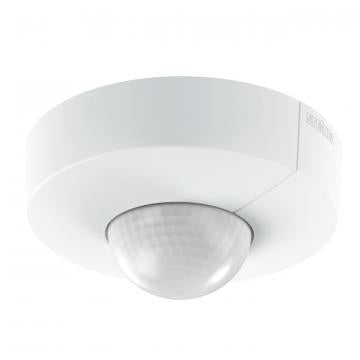

IS 3360 DALI-2 INPUT DEVICE ROUND SURFACE

Key Features:

• 360° infrared detection: Provides comprehensive coverage with a range of 20 m tangentially and 8 m radially, ideal for large indoor and outdoor spaces like multi-storey car parks, warehouses, and sports halls.
• DALI-2 Input Device integration: Seamlessly integrates with DALI-2 systems, allowing sensor data communication to advanced lighting management systems such as LiveLink.
• Surface-mounted installation: Designed for easy installation on ceilings, offering a professional and unobtrusive presence in both indoor and outdoor environments.

Product Description:

The Steinel IS 3360-R DALI-2 Motion Detector is an infrared sensor designed to monitor large spaces, such as multi-storey car parks, sports halls, and outdoor areas. With a detection angle of 360° and a reach of up to 20 m tangentially and 8 m radially, this motion detector ensures comprehensive monitoring and security for high-traffic areas. Its 1416 switching zones provide high precision, reducing false activations.

This sensor is fully integrated with DALI-2 systems, making it compatible with advanced lighting management platforms like LiveLink, enabling efficient lighting control based on real-time sensor data. The device supports master/slave interconnection via the DALI bus, offering flexible configurations for larger installations. The surface-mounted design is suitable for ceilings and provides a robust IP54 rating, making it ideal for both indoor and protected outdoor applications.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: Ø 8 m (50 m²)
  • Tangential: Ø 20 m (1257 m²)
  • Presence: Ø 3 m (7 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V, 50 – 60 Hz)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: 1416 switching zones, master/slave interconnection, sneak-by guard​
