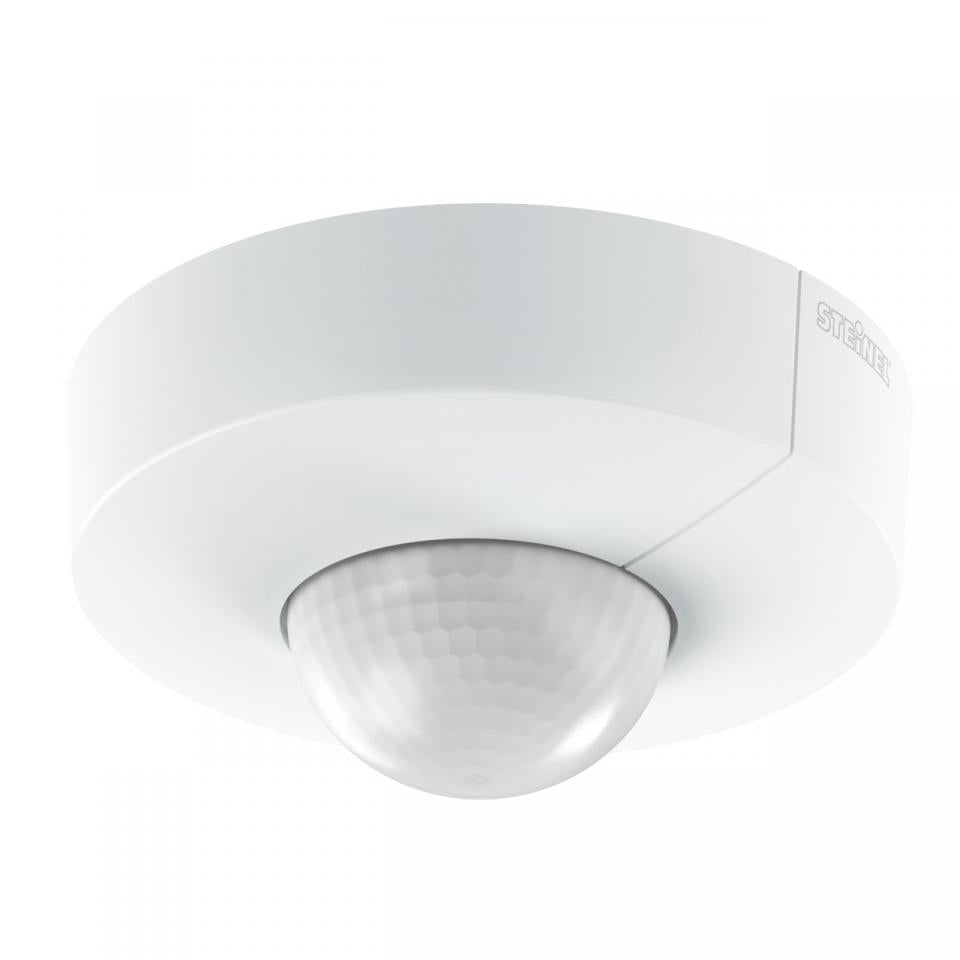

IS 3360 KNX V3.1 ROUND SURFACE

Key Features:

• 360° infrared detection: Covers a large area with a range of up to 40 m tangentially and 8 m radially, making it ideal for large indoor and outdoor spaces like car parks, sports halls, and warehouses.
• KNX integration: Seamlessly integrates with KNX systems, providing intelligent control over lighting and HVAC with features such as constant-lighting control, twilight setting, and energy-saving modes.
• Surface-mounted installation: Designed for surface-mounted installation, with large terminal compartments for easy wiring, suitable for indoor and outdoor environments.

Product Description:

The Steinel IS 3360-R KNX Motion Detector is designed for monitoring large indoor and outdoor spaces, such as multi-storey and underground car parks, sports halls, and warehouses. With its 360° infrared sensor, the detector offers reliable motion detection over an extensive tangential range of 40 metres and a radial range of 8 metres, making it ideal for large-scale applications.

This motion detector is fully compatible with KNX systems, enabling advanced control over lighting and HVAC systems. Key features include constant-lighting control, basic light level function, and adjustable twilight settings (2–1000 lux). The device supports energy-saving functions like TEACH mode, which automatically adjusts light sensitivity. The IS 3360-R is surface-mounted, making installation straightforward and perfect for both indoor and outdoor use.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: Ø 8 m (50 m²)
  • Tangential: Ø 40 m (1257 m²)
  • Presence: Ø 3 m (7 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4.0 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux, with TEACH mode
• Time Setting: Adjustable from 5 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 12.5 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted, ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: Constant-lighting control, day/night function, logic gate interconnection, master/slave interconnection, sneak-by guard
