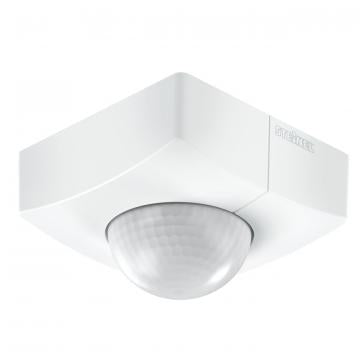

IS 3360 MX DALI-2 INPUT DEVICE SURFACE

Key Features:

• 360° infrared detection: Provides extensive coverage with a maximum tangential range of 36 m and radial range of 14 m, perfect for high-bay warehouses, sports halls, and large commercial properties.
• DALI-2 Input Device integration: Seamlessly communicates sensor data to advanced lighting management systems such as LiveLink, enabling efficient energy management and control.
• Surface-mounted installation: Designed for easy ceiling installation, ideal for high ceilings in industrial or commercial settings, with mounting heights up to 14 m.

Product Description:

The Steinel IS 3360 MX-E DALI-2 Motion Detector is specially designed for high-bay installations, making it ideal for large spaces with high ceilings such as warehouses, sports halls, and industrial buildings. With its high-precision 360° infrared sensor, the detector offers a maximum range of 36 metres tangentially and 14 metres radially, covering an area of up to 1000 square metres. The device ensures accurate motion detection even in expansive, high-traffic areas.

This motion detector integrates seamlessly with DALI-2 systems, allowing the sensor data to be communicated to higher-level lighting management platforms such as LiveLink, optimising energy efficiency. The IS 3360 MX-E features master/slave interconnection via the DALI bus, enabling scalable and flexible installations for larger spaces. Designed for surface-mounted installation, the device offers IP54 protection, making it suitable for both indoor and outdoor use in demanding environments.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: Ø 14 m (154 m²)
  • Tangential: Ø 36 m (1018 m²)
• Detection Angle: 360°
• Mounting Height: 4 to 14 m (optimal at 12 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: 1416 switching zones, master/slave interconnection, sneak-by guard​
