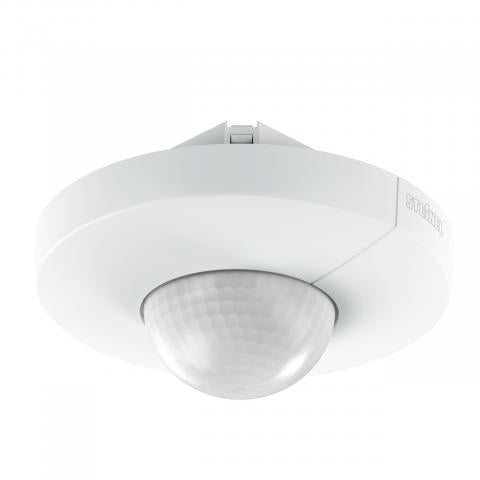

IS 3360 ROUND COM1 KNX 3.1 ROUND RECESSED DE

Key Features:

• 360° infrared detection: Covers large areas with a maximum range of 20 metres, making it ideal for high spaces such as parking garages and warehouses.
• KNX integration: Offers intelligent control over lighting and HVAC systems with advanced features like constant-lighting control, day/night switching, and energy-saving modes.
• In-ceiling installation: Designed for concealed installation, providing a sleek, unobtrusive presence while offering advanced motion and presence detection.

Product Description:

The Steinel IS 3360 KNX Motion and Presence Detector is engineered for monitoring large indoor and outdoor spaces, including high-ceiling environments like warehouses, parking garages, and multi-storey buildings. With a 360° detection angle and a maximum tangential range of up to 20 metres, it ensures comprehensive coverage, even in the largest of areas.

Fully compatible with KNX systems, this motion and presence detector provides intelligent control over lighting and HVAC systems, optimising energy usage with features like constant-lighting control and day/night switching. It is designed for in-ceiling installation, offering a discreet solution that blends seamlessly into the architecture. Configurable via ETS software or Smart Remote, the IS 3360 KNX is a versatile and reliable solution for building automation projects.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: Ø 8 m (50 m²)
  • Tangential: Ø 40 m (1257 m²)
  • Presence: Ø 3 m (7 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 4 m (optimal at 2.8 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 5 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 12.5 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: In-ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
