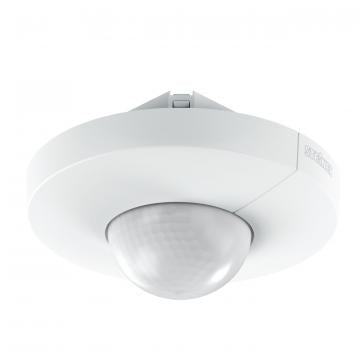

IS 345 DALI-2 INPUT DEVICE ROUND RECESSED

Key Features:

• 360° infrared detection: Provides reliable detection with a tangential range of 23 m and a radial range of 12 m, making it ideal for passageways, corridors, and frequently used indoor spaces.
• DALI-2 Input Device integration: Seamlessly integrates with DALI-2 systems, enabling sensor data communication to advanced lighting management platforms like LiveLink.
• Concealed installation: Designed for concealed ceiling installation, ensuring a professional and unobtrusive appearance in commercial indoor environments.

Product Description:

The Steinel IS 345-R DALI-2 Motion Detector is designed for high-precision motion detection in large indoor areas such as corridors, passageways, and multi-storey car parks. With its 360° detection angle and a tangential range of 23 metres, this motion detector offers comprehensive coverage. The device also features a radial detection range of 12 metres, making it suitable for areas with high foot traffic.

Integrated with DALI-2 systems, the IS 345-R communicates sensor data to higher-level lighting management systems like LiveLink, optimising lighting control based on real-time motion detection. The device supports master/slave interconnection via the DALI bus, ensuring scalability for larger installations. With concealed ceiling installation, the detector remains discreet while providing robust performance.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: Ø 12 m (72 m²)
  • Tangential: Ø 23 m (138 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 5.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V, 50 – 60 Hz)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: 280 switching zones, sneak-by guard, master/slave interconnection​
