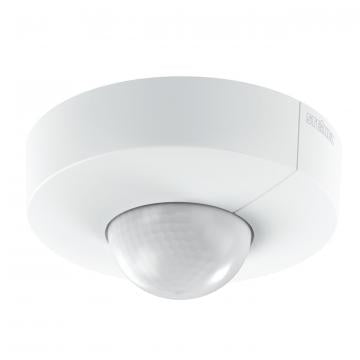

IS 345 DALI-2 INPUT DEVICE ROUND SURFACE

Key Features:

• 360° infrared detection: Covers a wide area with a range of 23 x 6 m (tangential) and 12 x 6 m (radial), making it ideal for passageways, corridors, and other commonly used spaces.
• DALI-2 Input Device integration: Fully compatible with DALI-2 systems, enabling sensor data to be communicated to higher-level lighting management systems such as LiveLink.
• Surface-mounted installation: Designed for surface installation on ceilings, suitable for both indoor and outdoor environments, with IP54 protection.

Product Description:

The Steinel IS 345-R DALI-2 Motion Detector is a high-performance infrared sensor designed to provide motion detection in large indoor and outdoor spaces such as corridors, passageways, and multi-storey car parks. Its 360° detection angle allows for comprehensive coverage, with a radial range of 12 x 6 metres and a tangential range of 23 x 6 metres. With 280 switching zones, the sensor ensures reliable detection, reducing false triggers.

This motion detector integrates seamlessly with DALI-2 systems, enabling the transmission of sensor data to advanced lighting management systems like LiveLink. It supports master/slave interconnection through the DALI bus, allowing for flexible configurations in large buildings. The IS 345-R is surface-mounted, making installation straightforward and robust, with an IP54 rating for durability in both indoor and protected outdoor environments.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR) with light sensor
• Detection Range:
  • Radial: 12 x 6 m (72 m²)
  • Tangential: 23 x 6 m (138 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 5.0 m (optimal at 2.8 m)
• Integration: DALI-2 Input Device for lighting control
• Power Supply: DALI bus-powered, 12–22.5 V, 50–60 Hz
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Operating Temperature: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted on ceilings
• Material: Plastic (RAL 9003 white)
• Additional Features: Master/slave interconnection, sneak-by guard
