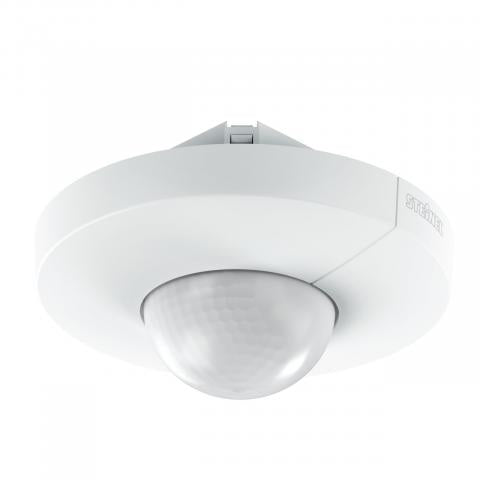

IS 345 KNX 3.1 ROUND RECESSED DE

Key Features:

• 360° infrared motion detection: Designed for long-range coverage, detecting motion up to 23 x 6 m, making it ideal for corridors, passageways, and large indoor spaces.
• KNX integration: Provides intelligent control for lighting and HVAC systems, including constant-lighting control, day/night function, and energy-saving modes.
• In-ceiling installation: Available for concealed wiring, with easy configuration via ETS software or Smart Remote for seamless integration into professional environments.

Product Description:

The Steinel IS 345 KNX Motion Detector is engineered to deliver exceptional performance in large indoor spaces such as passageways, corridors, and parking garages. Featuring 360° infrared detection, it provides reliable motion sensing across a range of up to 23 x 6 metres (tangential) and 12 x 6 metres (radial). This detector is designed for in-ceiling installation, offering a discreet, concealed setup that blends into the architectural surroundings.

Fully compatible with KNX systems, the IS 345 enables advanced control over lighting and HVAC systems, including constant-lighting control, day/night function, and energy-saving modes. Its versatile configuration options via ETS software or Smart Remote make it an excellent choice for professional building automation projects.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR)
• Detection Range:
  • Radial: 12 x 6 m (72 m²)
  • Tangential: 23 x 6 m (138 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 5 m (optimal at 2.5 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 0 seconds to 1092 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 12.5 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: In-ceiling, concealed wiring
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
