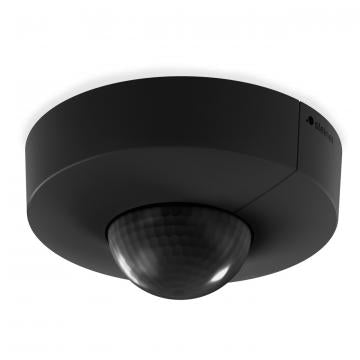

IS 345 KNX V3.1 ROUND SURFACE BLACK LENS

Key Features:

• 360° infrared motion detection: Provides motion detection up to 23 x 6 m, making it ideal for large spaces such as passageways, corridors, and parking garages.
• KNX integration: Offers intelligent lighting and HVAC control with features like constant-lighting control, day/night switching, and energy-saving modes.
• Flexible installation: Surface-mounted design with a large terminal compartment for easy installation and configuration via ETS software or Smart Remote.

Product Description:

The Steinel IS 345 KNX Motion Detector is engineered to provide reliable motion detection in large indoor and outdoor spaces such as corridors, passageways, and parking garages. With its 360° detection angle, it covers up to 23 x 6 m (tangential) and 12 x 6 m (radial), ensuring optimal coverage for high-traffic areas.

The IS 345 integrates seamlessly with KNX systems, providing intelligent control over lighting and HVAC systems. It features constant-lighting control, day/night switching, and a Teach mode for precise configuration. With its robust IP54 rating, this detector is suitable for both indoor and outdoor use. The surface-mounted design allows for quick and easy installation, with a large terminal compartment that simplifies wiring.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR)
• Detection Range:
  • Radial: 12 x 6 m (72 m²)
  • Tangential: 23 x 6 m (138 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 5 m (optimal at 2.5 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 5 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 12.5 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP54 for indoor and outdoor use
• Installation Type: Surface-mounted, ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
