IS 345 KNX V3.1 SQUARE RECESSED BLACK

Key Features:

• 360° infrared motion detection: Covers an area up to 23 x 6 m, ideal for monitoring large indoor spaces such as passageways and corridors.
• KNX integration: Provides intelligent control over lighting and HVAC systems, including constant-lighting control, day/night switching, and energy-saving modes.
• Concealed installation: Square, concealed design for seamless integration, with adjustable settings via ETS software or Smart Remote.

Product Description:

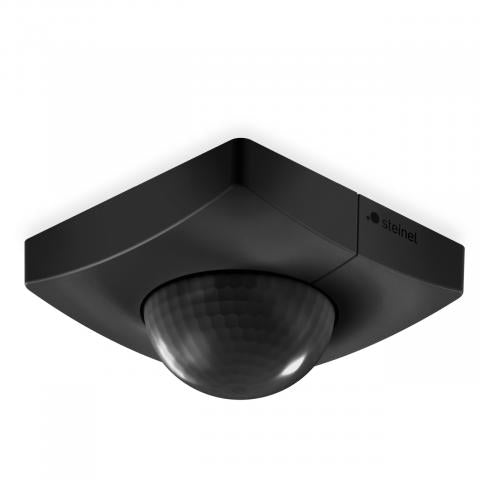

The Steinel IS 345 KNX Motion Detector is a high-performance motion sensor designed for both indoor and outdoor applications. With its wide detection range of up to 23 x 6 m (tangential) and 12 x 6 m (radial), this detector is perfect for passageways, corridors, and parking areas. Its concealed design ensures a discreet installation while maintaining full functionality.

This motion detector integrates with KNX systems, enabling intelligent control over lighting and HVAC systems with constant-lighting control, day/night switching, and energy-saving modes. Its robust design includes a 360° detection angle and Teach mode for easy configuration, making it a reliable choice for building automation projects.

Key Specifications:

• Detection Technology: Passive infrared sensor (PIR)
• Detection Range:
  • Radial: 12 x 6 m (72 m²)
  • Tangential: 23 x 6 m (138 m²)
• Detection Angle: 360°
• Mounting Height: 2.5 to 5 m (optimal at 2.5 m)
• Integration: KNX-compatible for lighting and HVAC control
• Lighting Channels: 2 channels
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: Adjustable from 5 seconds to 15 minutes
• Basic Light Level Function: Yes (0 – 100% adjustable)
• Operating Voltage: KNX bus-powered, 12.5 mA
• Ambient Temperature Range: -20°C to +50°C
• IP Rating: IP20 for indoor use
• Installation Type: Concealed ceiling installation
• Material: Plastic
• Additional Features: Constant-lighting control, day/night function, Teach mode, logic gate interconnection
