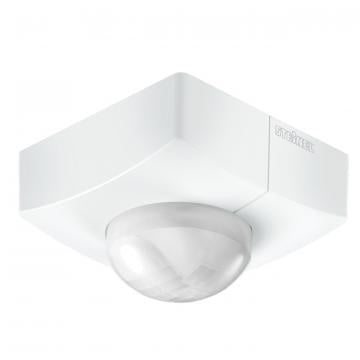

IS 345 MX DALI-2 INPUT DEVICE SQUARE SURFACE

Key Features:

• 360° infrared detection: Offers precise coverage with a maximum range of 30 m x 4 m, making it ideal for high-bay installations in warehouses, machine shops, and large indoor spaces.
• DALI-2 Input Device integration: Seamlessly communicates sensor data to advanced lighting management systems such as LiveLink, optimising energy usage.
• Surface-mounted installation: Designed for easy surface ceiling installation, perfect for large, high-ceiling environments with mounting heights up to 16 m.

Product Description:

The Steinel IS 345 MX-E DALI-2 Motion Detector is engineered for high-bay applications in large indoor spaces such as warehouses, depots, and machine shops. With a wide detection range of 30 x 4 m and a 360° detection angle, this motion detector ensures comprehensive coverage of expansive areas. Its robust design allows for precise motion detection even at great heights, making it perfect for installations with mounting heights up to 16 metres.

This motion detector integrates fully with DALI-2 systems, enabling it to transmit sensor data to higher-level lighting management platforms like LiveLink. The IS 345 MX-E supports master/slave interconnection via the DALI bus, allowing for scalable installations. With a surface-mounted design, this sensor is easy to install in a variety of high-ceiling applications. Its IP54 rating ensures durability in challenging industrial environments.

Key Specifications:

• Detection Technology: Passive infrared sensor with light sensor
• Detection Range:
  • Radial: 30 x 4 m (120 m²)
  • Tangential: 30 x 4 m (120 m²)
• Detection Angle: 360°
• Mounting Height: 4 to 16 m (optimal at 12 m)
• Integration: DALI-2 Input Device, master/slave interconnection via DALI bus
• Power Supply: DALI bus-powered (12 – 22.5 V)
• Current Consumption:
  • Max: 24 mA (IEC 62386-101)
  • Typical: 5 mA (at 16 V input)
• Twilight Setting: Adjustable from 2 to 1000 lux
• Time Setting: 5 seconds to 15 minutes
• Operating Temperature: -20°C to +50°C
• IP Rating: IP54 for indoor and protected outdoor use
• Installation Type: Surface-mounted ceiling installation
• Material: Plastic (RAL 9003 white)
• Additional Features: 280 switching zones, sneak-by guard, master/slave interconnection​
