KNX 1-10V Dimmer 4- Fold

Key Features

• Four Independent Dimming Channels: Supports 4 channels with 1–10V passive control output and 16A/250V AC switching capacity for versatile lighting management.

• Passive 1–10V Control: Operates in passive DC drive mode without requiring an additional voltage input, simplifying wiring and integration.

• Comprehensive KNX Functions: Includes switching, relative and absolute dimming, scene control (up to 15 scenes), status response, preset functions, and staircase lighting.

• High Load Capability: Robust 16A relay output per channel ensures reliable control of heavy-duty lighting circuits.

• Secure & Efficient Operation: Supports KNX Data Secure communication with low power consumption (12 mA) for enhanced reliability.

• DIN-Rail Installation: Compact 8SU MDRC design for easy DIN-rail mounting, ideal for professional KNX lighting control panels.

Product Description

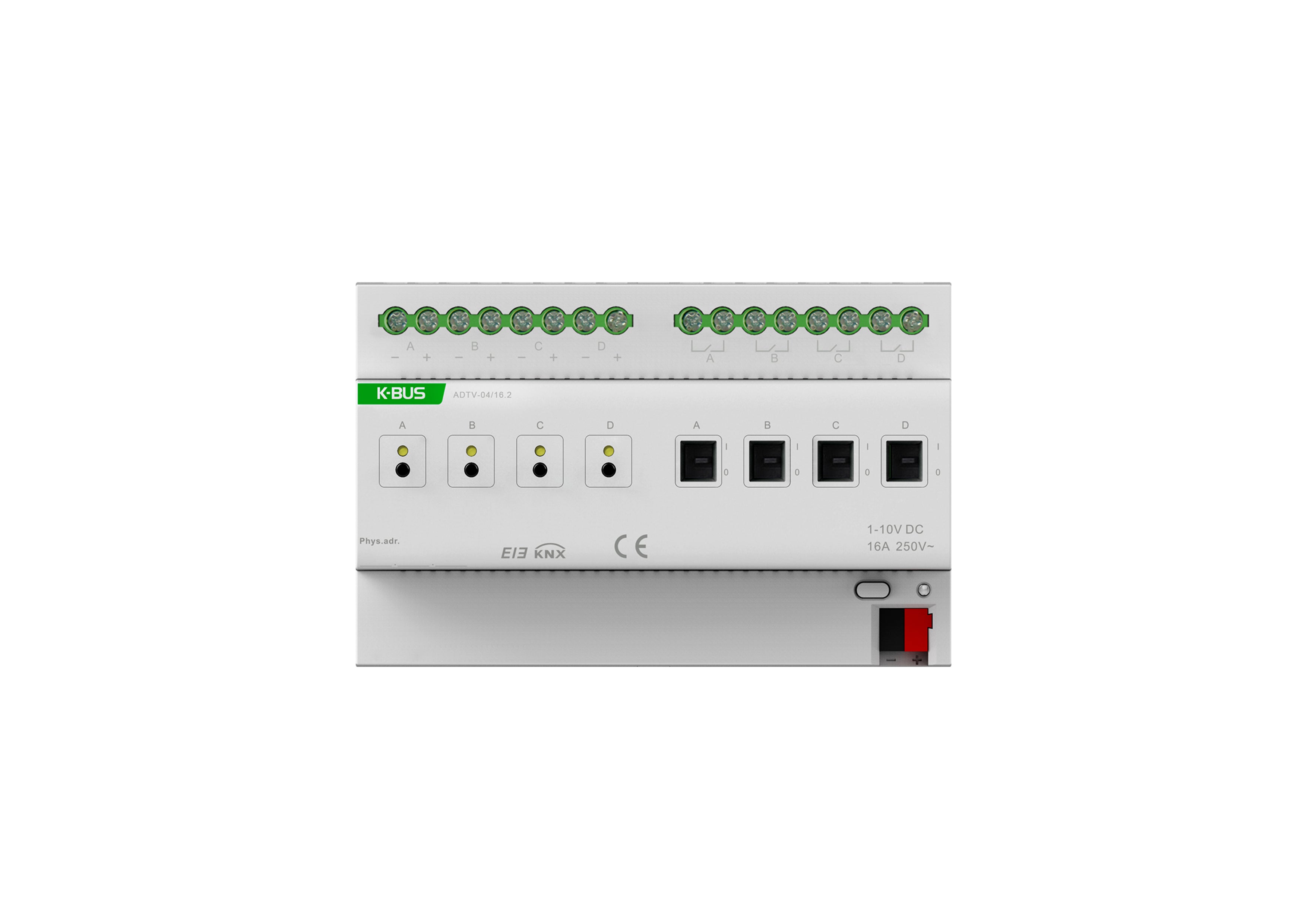

The GVS KNX 1–10V Dimming Actuator with Secure, 4-Fold, 16A, 8SU MDRC is designed to provide precise analog lighting control within KNX-based smart building systems. Supporting passive DC 1–10V dimming, it allows seamless brightness adjustment for compatible ballasts and drivers while switching loads up to 16A at 250V AC per channel.

This actuator delivers full KNX functionality, including switching, relative and absolute dimming, scene control (up to 15 scenes), preset storage, staircase lighting, and status response, ensuring flexible and intelligent lighting management.

Operating entirely from the KNX bus (12 mA), the device simplifies wiring by eliminating the need for an auxiliary voltage input. Its KNX Data Secure capability ensures encrypted, tamper-resistant communication, meeting modern data security standards.

With a compact 8SU DIN-rail design, it integrates easily into control cabinets and is ideal for commercial, residential, and architectural lighting applications. The GVS KNX 1–10V Dimming Actuator – 4-Fold, 16A delivers robust performance, reliable switching, and flexible dimming control for professional-grade KNX lighting environments.
