KNX Fan coil Controller, 0-10V

Key Features

• Versatile Output Control: Supports both 0–10V analogue and 10A/105µF relay outputs, providing flexibility for various fan coil or actuator applications.

• High Switching Capacity: Handles up to 16A at 30V DC, supporting 230V AC drives and 24V AC systems with a 0–10V drive interface.

• Integrated Temperature Sensor Interface: Equipped with a three-wire PT1000 temperature sensor input for precise environmental feedback and control.

• Comprehensive KNX Functions: Includes fan coil control, scene control (up to 8 scenes), and the ability to configure outputs as standard switching channels.

• DIN-Rail Mounted Design: Compact 4SU MDRC housing ensures straightforward installation and seamless integration into KNX panels.

• KNX Bus Powered: Operates solely from the KNX bus (15 mA), eliminating the need for an external power supply.

Product Description

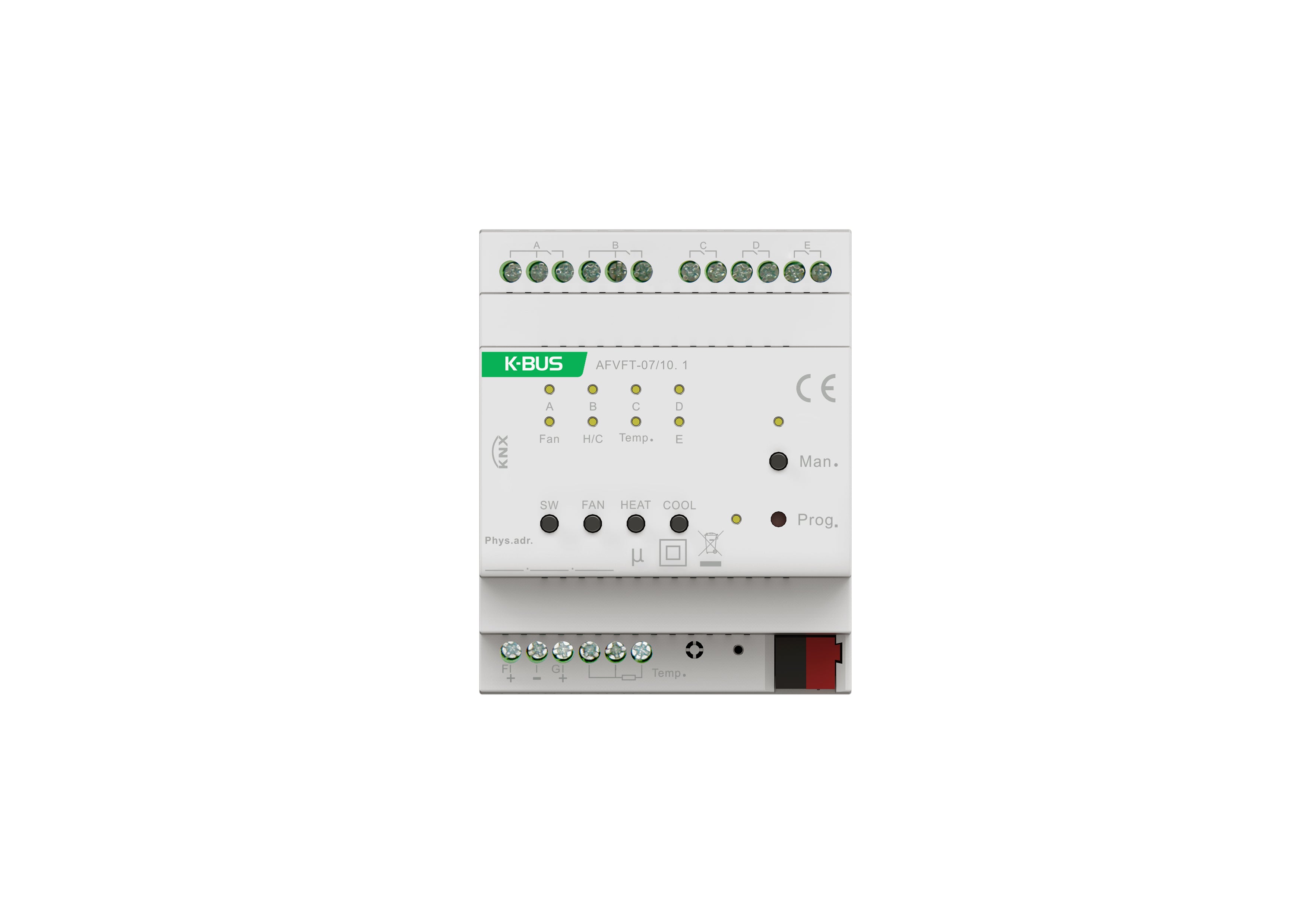

The GVS KNX Fan Coil Actuator with 0–10V, 4SU MDRC is a high-performance actuator designed for precise climate and environmental control within KNX-based building automation systems. Offering both 0–10V analogue and relay output options (10A/105µF), it provides flexibility for controlling a wide range of fan coil units, HVAC systems, and similar applications.

With a maximum DC switching capacity of 16A at 30V and compatibility with 230V AC and 24V AC drive interfaces, this actuator delivers dependable control for both residential and commercial systems. The integrated PT1000 temperature sensor interface ensures accurate feedback, enabling smart climate regulation and comfort optimisation.

Full KNX functionality includes fan coil operation, scene control (up to 8 folds), and configurable outputs that can function as standard switching channels. Its DIN-rail 4SU form factor allows for easy installation and neat integration into control cabinets.

Powered entirely via the KNX bus (15 mA), the GVS KNX Fan Coil Actuator with 0–10V offers intelligent performance, flexible configuration, and seamless interoperability—making it an essential solution for efficient, modern HVAC automation.
