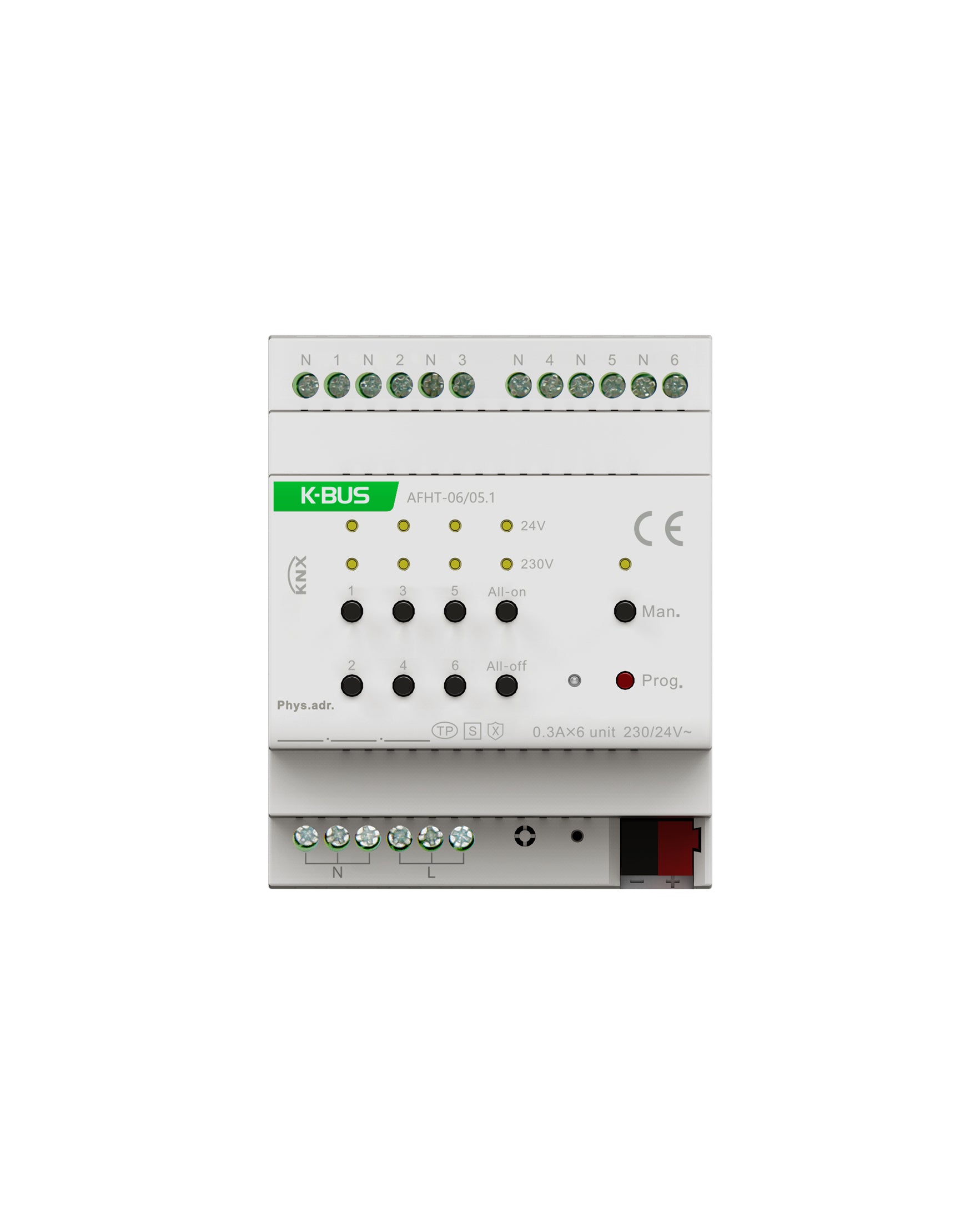

KNX Heating Actuator with Traic, 6 Fold (KNX Secure)

Key Features

• 6 Independent Valve Outputs: Controls up to six individual thermal drives with a maximum output of 300 mA per channel, ideal for precise zone-based heating and cooling control.

• Supports 24V AC and 230V AC Drives: Compatible with both 24V AC and 230V AC thermal actuators, providing flexibility across diverse HVAC installations.

• Integrated Room Temperature Controllers: Includes six built-in controllers supporting heating and cooling modes for complete climate management.

• Advanced Control Algorithms: Utilises 2-point and PI (Proportional-Integral) control algorithms for stable and efficient temperature regulation.

• Scene and Mode Control: Offers up to 5 scene functions for customised comfort settings and efficient energy management.

• Secure & Reliable Operation: Powered entirely from the KNX bus (13.5 mA) and designed for DIN-rail mounting (4SU MDRC) with KNX Data Secure support for encrypted communication.

Product Description

The GVS KNX Heating Actuator with Triac & Secure, 6-Fold, 4SU MDRC delivers precise and intelligent thermal control for KNX-based heating and cooling systems. Designed for 24V AC or 230V AC thermal drives, it offers six independent valve outputs (300 mA each), enabling accurate temperature management across multiple zones.

Each channel functions as an independent room temperature controller, supporting both heating and cooling modes. The actuator integrates 2-point and PI control algorithms to ensure stable temperature regulation, energy efficiency, and occupant comfort.

With five programmable scene functions, users can easily configure and recall pre-set comfort scenarios, optimising performance for daily routines or seasonal changes. KNX Data Secure support ensures encrypted communication for enhanced reliability and data protection.

The compact 4SU DIN-rail-mounted design allows easy installation and integration into any KNX system, powered entirely from the KNX bus (13.5 mA).

The GVS KNX Heating Actuator with Triac & Secure – 6-Fold combines efficient HVAC control, smart functionality, and secure KNX connectivity—making it an ideal choice for advanced building automation projects focused on comfort and energy optimisation.
