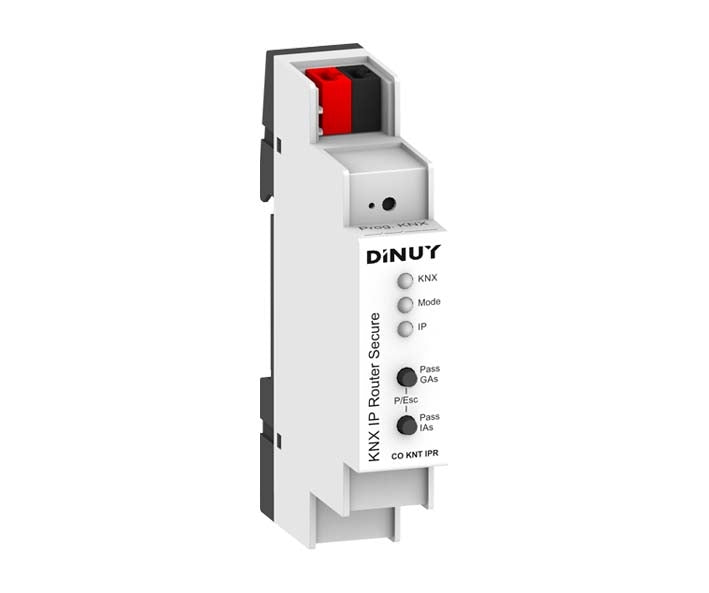

KNX IP Router Secure

KNX IP Router Secure

SKU : CO KNT IPR

Brand : Dinuy

  • Telegram Forwarding: The KNX IP Secure Router efficiently forwards telegrams between different lines via a LAN (IP) network, acting as a rapid backbone for seamless communication within a KNX installation.
  • PC Connection: Suitable for connecting a PC to the KNX network, facilitating tasks such as ETS programming for convenient device configuration.
  • KNX Security Support: This device supports KNX Security, ensuring secure communication by activating security features in the ETS. As a Router Secure, it enables secure coupling of unsecured KNX TP communication to a protected IP backbone.
  • Interface Functionality (Tunnelling): With interface functionality (tunnelling), the KNX IP Secure Router prevents unauthorized access, maintaining the security of the KNX network.
  • IP Address Configuration: The IP address can be obtained either through a DHCP server or manually configured using the ETS software, providing flexibility in network setup.
  • KNXnet/IP Specification: Operates according to the KNXnet/IP specification, incorporating core, device management, tunnelling, and routing components for comprehensive functionality.
  • Extended Filter Table: Features an extended filter table for main group 0..31, offering enhanced control over telegrams and the ability to store up to 150 telegrams for efficient data management.
  • Bus-Powered: The KNX IP Secure Router is powered via the KNX bus, eliminating the need for additional power sources and simplifying installation.
